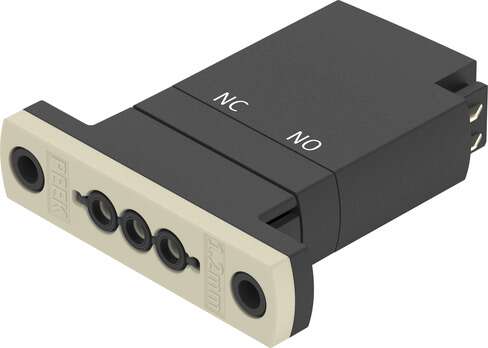

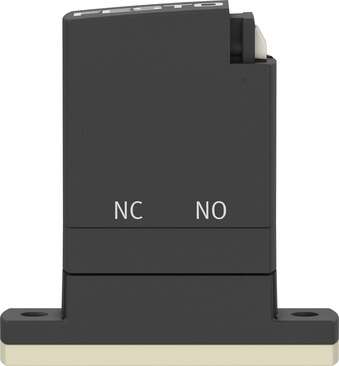

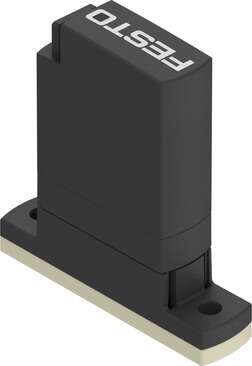

| Structural design | Rocker valve with diaphragm seal |
| Sealing principle | Soft |
| Materials in contact with the media | FFPMPEEK |
| For use in the food industry | See supplementary material information |
| Valve function | 3/2, open/closed, monostable |
| Nominal width | 1.2 mm |
| Flow direction | Reversible with restrictions |
| Actuation type | Electrical |
| Type of control | Direct |
| Reset method | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | With through-hole for M2 screw |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram Q7 |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection for input 1, connection pattern | 00997312 |
| Size | 7 |
| Width dimension | 7.5 mm |
| Fluid connector | Flange |
| Medium | Liquid mediaGaseous media |
| Information on medium | Observe resistance of materials that come into contact with mediaMaximum particle size 5 µm |
| Internal volume | 16 µl fluid space valve26 µl valve with fluid connections |
| Temperature of liquid media | 15 °C … 50 °C |
| Medium temperature gaseous media | 15 °C … 50 °C |
| Ambient temperature | 15 °C … 50 °C |
| Storage temperature | -20 °C … 70 °C |
| Medium pressure | 0 MPa … 0.2 MPa |
| Medium pressure | 0 bar … 2 bar |
| Medium pressure | 0 psi … 29 psi |
| Note on the medium pressure | COM: 0 – 2 bar / 0 – 0.2 MPa / 0 – 29 psiNC: 0 – 1 bar / 0 – 0.1 MPa / 0 – 14.5 psiNO: 0 – 1 bar / 0 – 0.1 MPa / 0 – 14.5 psi |
| Burst pressure | 2.3 MPa |
| Burst pressure | 23 bar |
| Burst pressure | 333.5 psi |
| DC operating voltage range | 12 V … 26 V |
| Note on operating voltage range DC | With electrical sub-base VAVE-K1-… |
| Permissible voltage fluctuations | +/- 10 % |
| Electrical power consumption | 3.5 W |
| Note on power consumption | Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-… |
| Coil characteristics | 12 – 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W |
| Insulation class | B |
| Duty cycle | 100% in combination with holding current reductionFollow the instructions on operating the air solenoid valves. |
| Max. switching frequency | 6 Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation stateAt 100% duty cycle depending on ambient temperature and installation condition. Higher switching frequencies possible with duty cycle < 100%. |
| Response time “on” for liquid media | 5 ms |
| Switching time on gaseous media | 5 ms |
| Response time “off” for liquid media | 6 ms |
| Switching time off gaseous media | 5 ms |
| Standard nominal flow rate | 11 l/min |
| Note on standard nominal flow rate | At a pressure drop of 1 -> 0 bar (gaseous media) |
| Flow rate Kv | 0.021 m³/h |
| Flow rate Kv | 0.35 l/min |
| Note on flow rate Kv | For the medium waterPressure difference 1 bar |
| Water flow rate at max. operating pressure | 0.5 l/min0.03 m³/h |

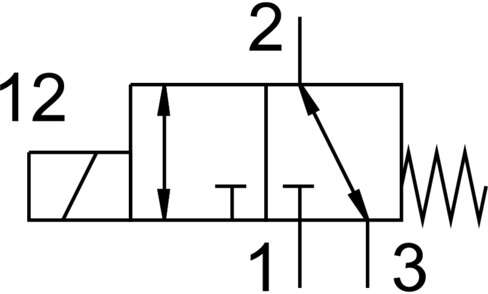

| Symbol | 00992967 |
| Housing material | PA-reinforcedPEEKPPA-reinforced |
| Diaphragm material | FFPM |
| Seals material | FFPM |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 10.9 g |
| Degree of protection | IP40 |
| Note on degree of protection | In mounted state |
| Application note | For indoor use only |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
