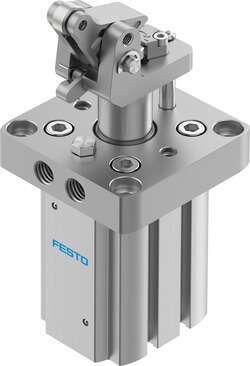

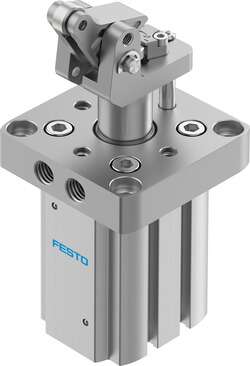

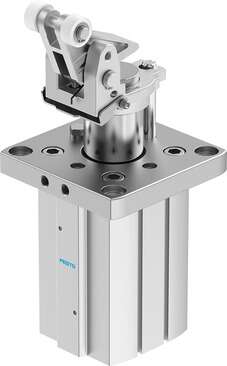

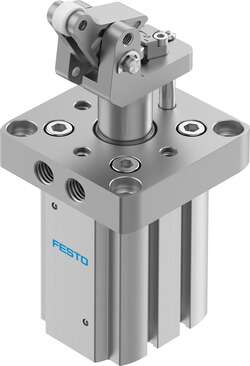

Stopper cylinder

GTIN: 4052568456337

8085907

SKU: DFST-63-30-L-Y4-A-G2

Description

Stroke 30 mm
Piston diameter 63 mm
Cushioning Elastic cushioning rings/pads at both ends
Pneumatic shock absorber, adjustable, at front
Mounting position Vertical
Mode of operation Double-acting
Pulling
Structural design Piston rod with toggle lever
Position sensing For proximity sensor
Toggle lever position query For inductive proximity sensors

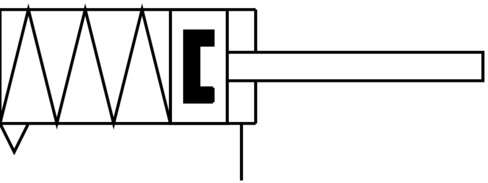

Symbol 00991204
Protection against torsion/guide Guide rod
Operating pressure 2 bar … 10 bar
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC) 1 – Low corrosion stress
Ambient temperature 5 °C … 60 °C
Cushioning length 15 mm
Permissible impact force on the advanced piston rod 5,000 N
Product weight 3,400 g
Type of mounting With through-hole
Pneumatic connection G1/8
Note on materials Contains paint-wetting impairment substances
RoHS-compliant
Cover material Die-cast aluminum
Seals material NBR
Housing material Wrought aluminum alloy
Piston rod material High-alloy stainless steel
Roller material POM
