| Stroke | 30 mm |
| Piston diameter | 80 mm |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Single-acting Pulling |
| Structural design | Piston Piston rod with roller |
| Position sensing | For proximity sensor |

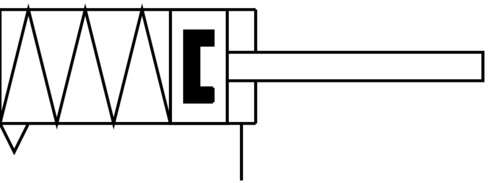

| Symbol | 00991204 |
| Variants | Piston rod at one end |
| Protection against torsion/guide | Flattened piston rod |
| Operating pressure | 1 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | 0 °C … 60 °C |
| Permissible impact force on the advanced piston rod | 14,600 N |
| Permissible lateral force during switching operation | 4,500 N |
| Type of mounting | With through-hole |
| Pneumatic connection | G1/8 |
| Cover material | Aluminum |
| Seals material | NBR |
| Housing material | Aluminum |
| Piston rod material | High-alloy stainless steel |
| Roller material | Steel |
