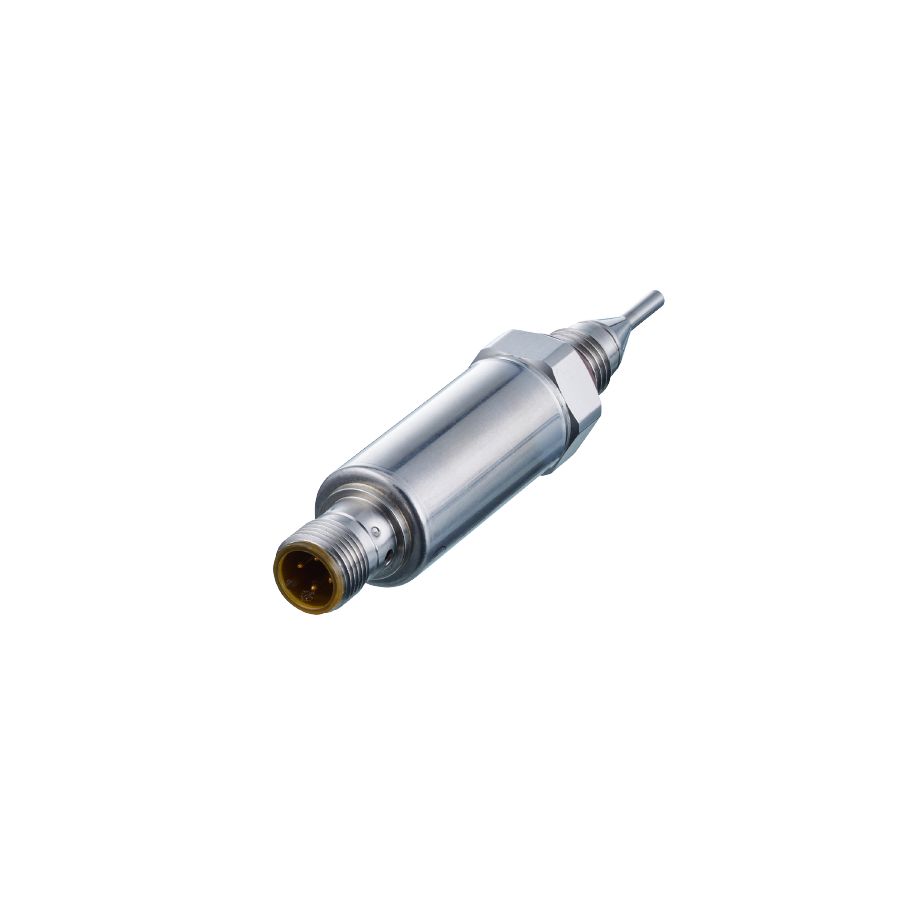

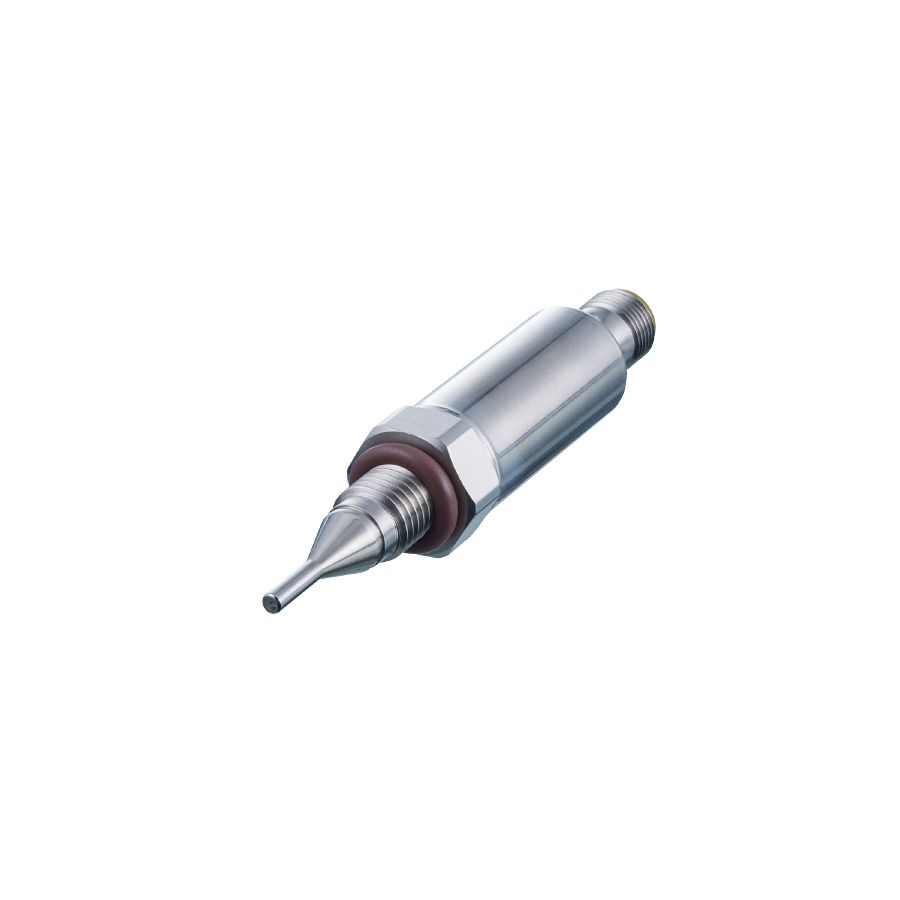

TA1102

Description

Product characteristics

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range [°C]	-50…200
Process connection	threaded connection M12 x 1,5 sealing cone
Installation length EL [mm]	17

Application

Measuring element	1 x Pt 1000; (to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	100
Vacuum resistance [mbar]	-1000

Electrical data

Operating voltage [V]	18…32 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	2

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal; IO-Link; (configurable)
Number of analogue outputs	1
Analogue current output [mA]	4…20
Max. load [Ω]	250; ((18…19 V); 19…32 V: 300 Ω)
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring range [°C]	-50…200
Factory setting	0…200 °C

Resolution

Resolution of analogue output [K]	0.04

Accuracy / deviations

Precision analogue output [K]	± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]	0,1; (in case of deviation from the reference condition 25 ± 5 °C)

Response times

Dynamic response T05 / T09 [s]	< 0,25 / < 1

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1

Operating conditions

Ambient temperature [°C]

-25…80

Note on ambient temperature

at medium temperature: < 160 °C

-25…60 °C

at medium temperature: < 200 °C

Storage temperature [°C]

-40…100

Protection

IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-3

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

10 g (10…2000 Hz)

MTTF [years]

334

Note on approval

factory certificate available as download at www.factory-certificate.ifm

UL approval

UL Approval no.

K002

Mechanical data

Weight [g]	111.5
Materials	stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L) electropolished
Tightening torque [Nm]	20
Process connection	threaded connection M12 x 1,5 sealing cone
Surface characteristics Ra/Rz of the wetted parts	Ra: < 0.8
Probe diameter [mm]	3
Installation length EL [mm]	17
