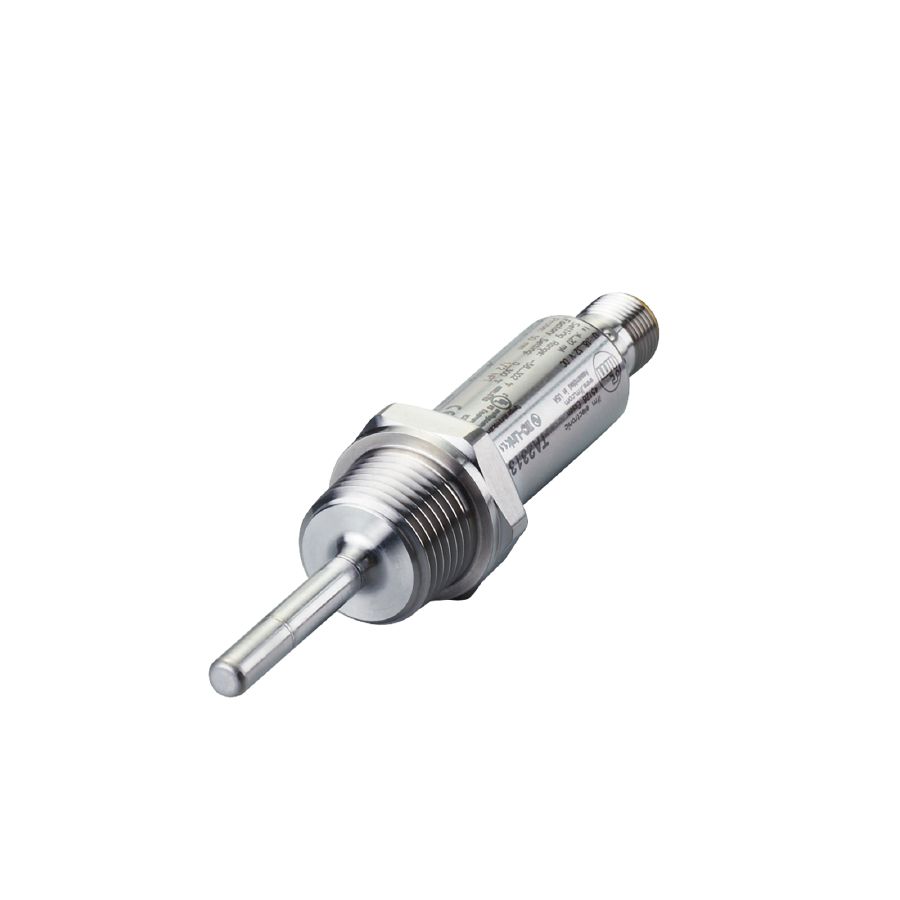

TA2313

Description

Product characteristics

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range [°F]	-58…302
Process connection	threaded connection 1/2″ NPT
Installation length EL [mm]	50

Application

Special feature

Gold-plated contacts

Measuring element

1 x Pt 1000; (to DIN EN 60751, class A)

Media

liquids and gases

Pressure rating [bar]

300

Note on pressure rating

sensor

When mounted in adapters the specifications of the adapter data sheet apply.

MAWP (for applications according to CRN) [bar]

300

Electrical data

Operating voltage [V]	18…32 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal; IO-Link; (configurable)
Number of analogue outputs	1
Analogue current output [mA]	4…20
Max. load [Ω]	250; ((18…19 V); 19…32 V: 300 Ω)
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring range [°F]	-58…302
Factory setting	0…300 °F

Resolution

Resolution of analogue output [K]	0.04

Accuracy / deviations

Precision analogue output [K]	± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]	0,1; (in case of deviation from the reference condition 25 ± 5 °C)

Response times

Dynamic response T05 / T09 [s]	1 / 3

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1

Operating conditions

Ambient temperature [°C]	-25…80
Storage temperature [°C]	-40…100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61000-6-2

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

20 g (10…2000 Hz)

MTTF [years]

572

UL approval

UL Approval no.

K002

Mechanical data

Weight [g]	132.5
Dimensions [mm]	Ø 18.7
Materials	stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	threaded connection 1/2″ NPT
Probe diameter [mm]	6
Installation length EL [mm]	50
