| Stroke | 3 mm … 500 mm |
| Piston diameter | 63 mm |
| Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Piston rod end | External thread |
| Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor |

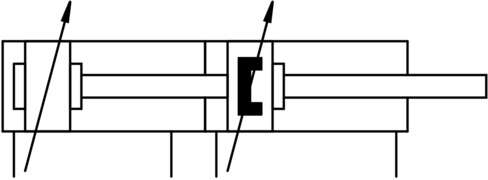

| Symbol | 00995911 |
| Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 0.06 MPa … 1 MPa |
| Operating pressure | 0.6 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -20 °C … 120 °C |
| Impact energy in the end positions | 0.5 J |
| Cushioning length | 22 mm |
| Theoretical force at 6 bar, retracting | 3,364 N |
| Theoretical force at 6 bar, advancing | 3,552 N |
| Type of mounting | With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum |
| Seals material | FPM |
| Housing material | Wrought aluminum alloy Smooth anodized |
| Piston rod material | High-alloy steel |
