Description
Stroke | 3 mm … 500 mm |
Piston diameter | 125 mm |
Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any |
Mode of operation | Double-acting |
Piston rod end | External thread |

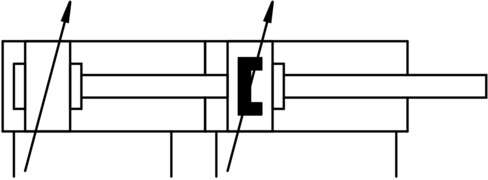

Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor |
Symbol | 00995911 |
Variants | Heat-resistant seals max. 120°C |
Operating pressure | 0.06 MPa … 1 MPa |
Operating pressure | 0.6 bar … 10 bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
Ambient temperature | -20 °C … 120 °C |
Impact energy in the end positions | 5 J |
Cushioning length | 42 mm |
Theoretical force at 6 bar, retracting | 13,762 N |
Theoretical force at 6 bar, advancing | 14,244 N |
Type of mounting | With accessories |
Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum |
Seals material | FPM |
Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | High-alloy steel |
