Thermomanometer

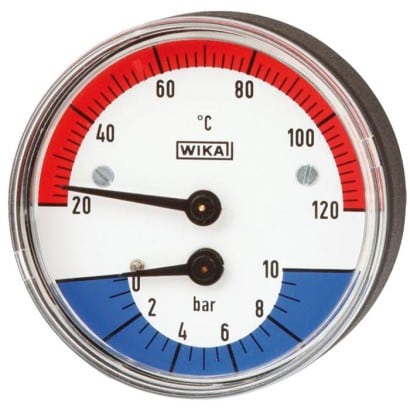

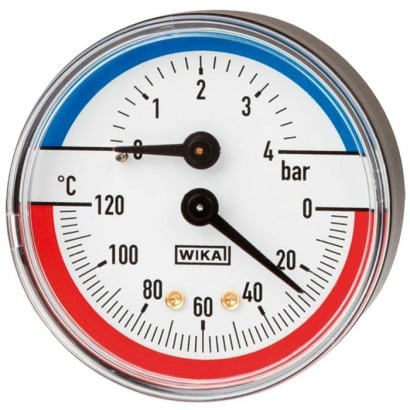

The thermomanometer with bimetal system is fitted directly at the measuring point via a stem. The valve allows the measuring instrument to be unscrewed without having to empty the heating system first. Due to the combination of a pressure gauge and a bimetal thermometer the instrument can be used flexibly in a wide variety of applications.

Nominal size in mm
63, 80

Accuracy class

• Pressure: 2.5 (EN 837-1)
• Temperature: ±2.5 °C

Scale ranges

• Pressure: 0 … 1 to 0 … 16 bar
• Temperature: 0 … 100 to 0 … 150 °C

Working ranges

• Pressure: Steady: 3/4 x full scale value
  Fluctuating: 2/3 x full scale value
  Short time: Full scale value
• Temperature: Full scale value

Measuring elements

• Pressure: Bourdon tube, copper alloy
• Temperature: Bimetal coil, copper alloy
