| Valve function | Flow control function |
| Pneumatic connection 1 | M3 |
| Pneumatic connection 2 | M3 |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 18 l/min |
| Operating pressure | 0 bar … 10 bar |
| Ambient temperature | -10 °C … 60 °C |
| Mounting position | Any |

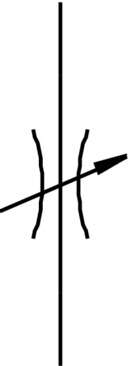

| Symbol | 00991454 |
| Standard flow rate in flow control direction 6 -> 0 bar | 33 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C … 60 °C |
| Max. tightening torque | 0.3 Nm |
| Product weight | 2 g |
| Material of screwed trunnion | Brass |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc |
