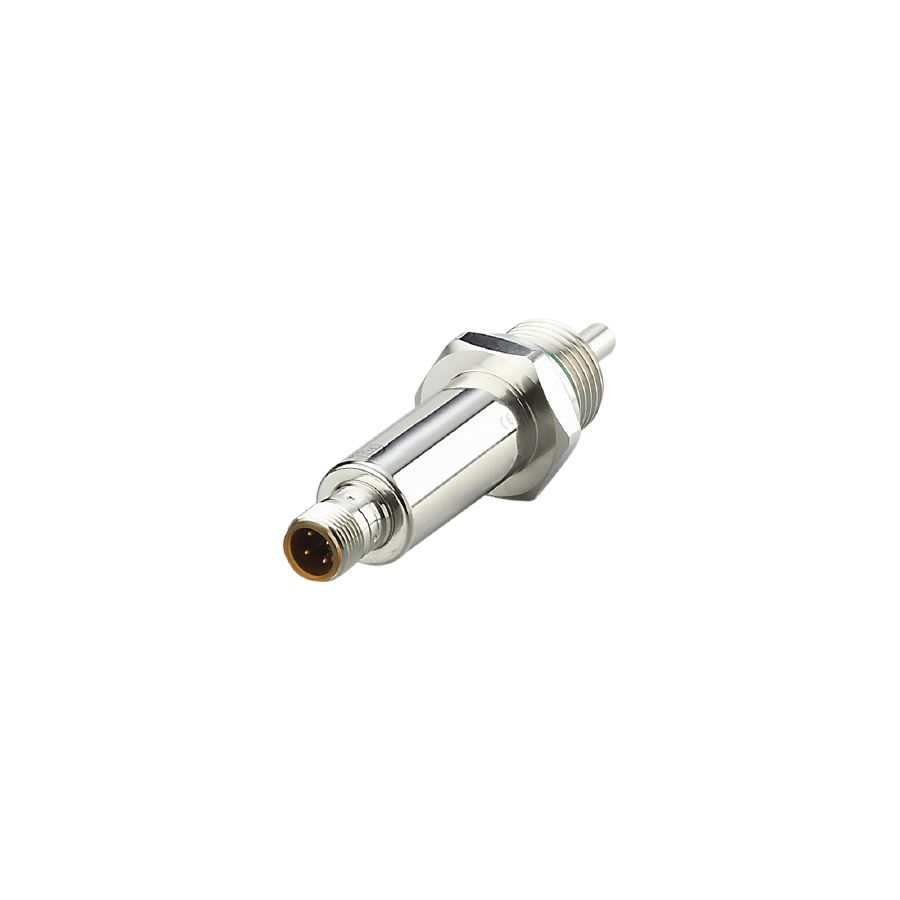

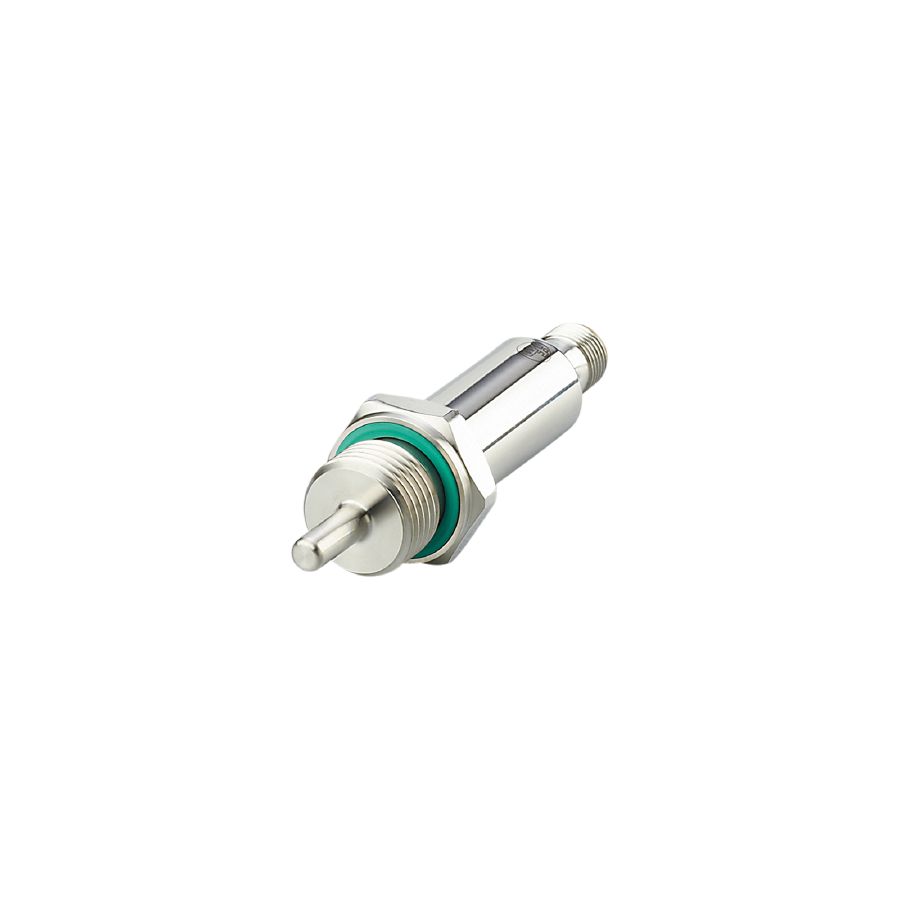

TV7405

Description

Product characteristics

Number of inputs and outputs	Number of digital outputs: 2
Measuring range [°C]	-50…150
Process connection	threaded connection G 1/2
Installation length EL [mm]	30

Application

Special feature

Gold-plated contacts

Measuring element

1 x Pt 1000; (to DIN EN 60751, class A)

Media

liquids and gases

Pressure rating [bar]

300

Note on pressure rating

sensor

When mounted in adapters the specifications of the adapter data sheet apply.

Electrical data

Operating voltage [V]	18…32 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100

Measuring/setting range

Measuring range [°C]	-50…150
Set point SP [°C]	-49.8…150
Reset point rP [°C]	-50…149.8
In steps of [°C]	0.1

Resolution

Resolution of switching output [K]	0.1

Accuracy / deviations

Switch point accuracy [K]	± 0,3
Temperature drift per 10 K [K]	0.1 **)

Response times

Dynamic response T05 / T09 [s]	1 / 3; (to DIN EN 60751)

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1

Operating conditions

Ambient temperature [°C]

-40…80

Note on ambient temperature

at medium temperature: < 125 °C

-40…50 °C

at medium temperature: < 150 °C

Storage temperature [°C]

-40…100

Protection

IP 69K

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-3

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10…2000 Hz)

MTTF [years]

542.6

UL approval

UL Approval no.

K019

Mechanical data

Weight [g]	110
Materials	stainless steel (1.4404 / 316L); FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM
Tightening torque [Nm]	45
Process connection	threaded connection G 1/2
Probe diameter [mm]	6
Installation length EL [mm]	30
