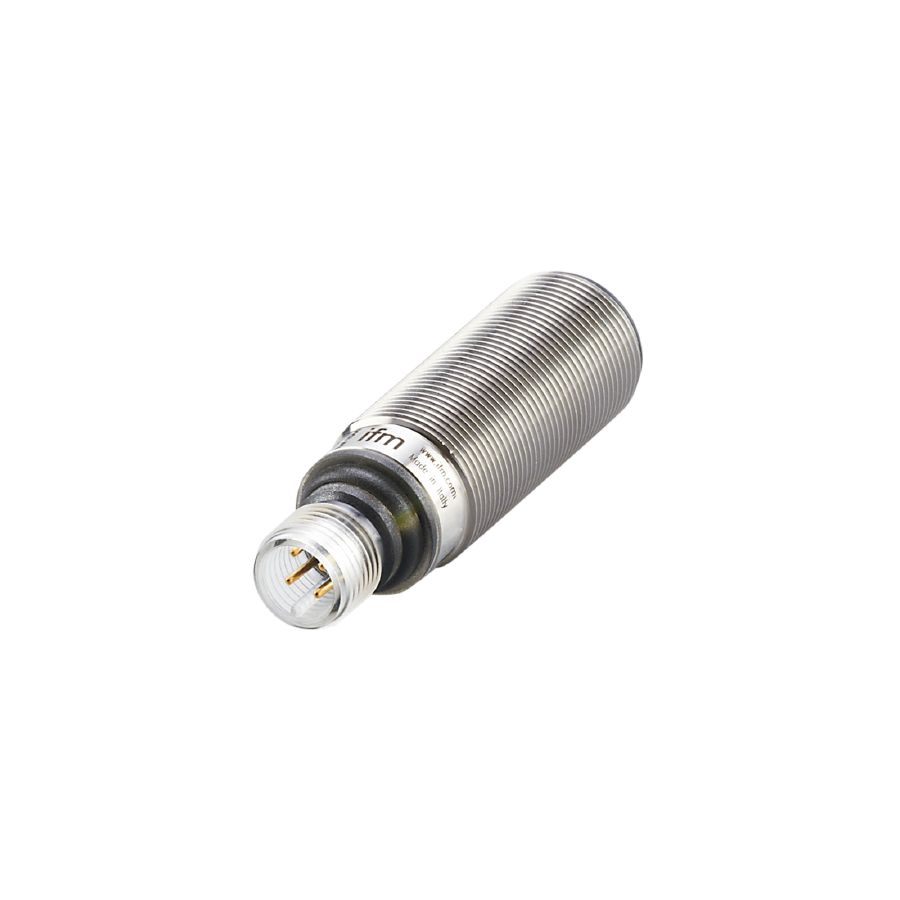

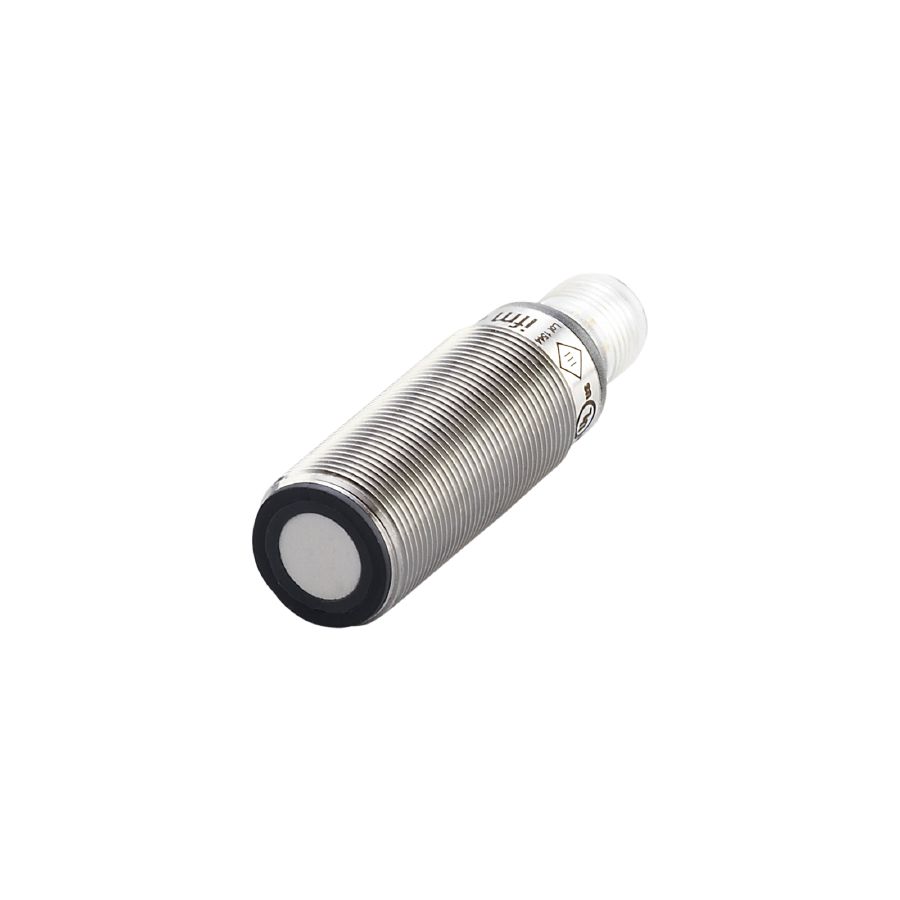

UGT523

Description

Product characteristics

Electrical design	NPN
Output function	normally open / normally closed; (parameterisable)
Sensing range [mm]	80…1200; (Target: 200 x 200 mm)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60.5

Electrical data

Operating voltage [V]	10…30 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Converter frequency [kHz]	200

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Inputs

Synchronisation input	no
Multiplex input	no

Outputs

Total number of outputs	1
Electrical design	NPN
Number of digital outputs	1
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	5
Short-circuit protection	yes
Overload protection	yes

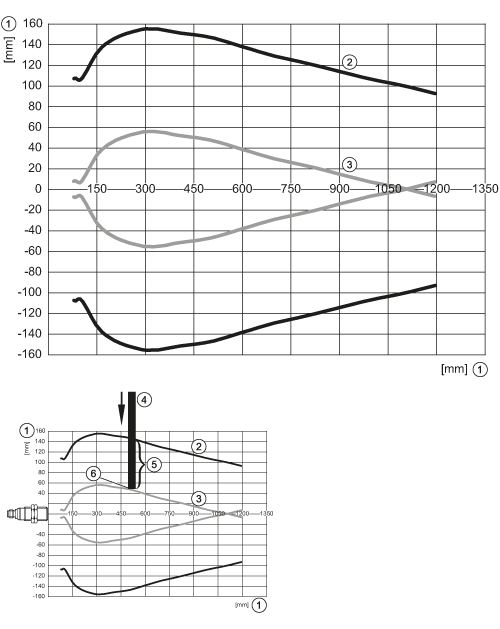

Detection zone

Sensing range [mm]	80…1200; (Target: 200 x 200 mm)
Blind zone [mm]	80
Angle of aperture cylindrical [°]	14; (±2)
Max. deviation from the 90° angle sensor/object [°]	± 4

Accuracy / deviations

Temperature compensation	yes
Hysteresis [%]	< 1
Switch point drift [%]	-2.5…2.5
Linearity error of analogue output [%]	< 1
Resolution [mm]	2
Notes on the accuracy / deviation	The indicated values are reached after a warm-up time of min. 20 minutes

Operating conditions

Tests / approvals

EMC

Vibration resistance

EN 60068-2-6 Fc

(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

yes

MTTF [years]

210

UL approval

Mechanical data

Weight [g]	79
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60.5
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; epoxy glass ceramics
Tightening torque [Nm]	50
