$487,40

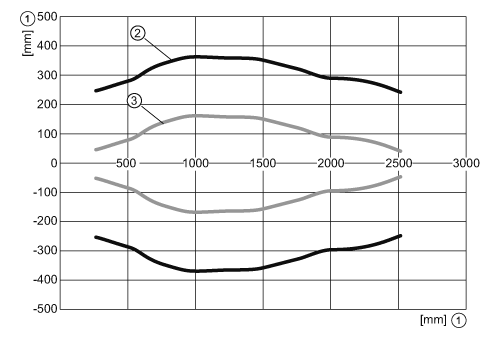

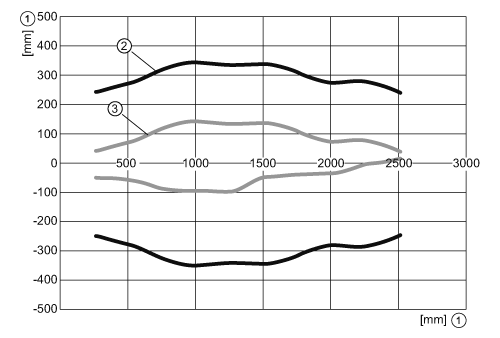

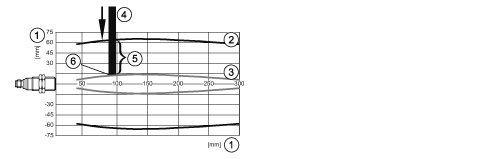

| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range [mm] | 250…2500; (Target: 400 x 400 mm) |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 103 |
| Operating voltage [V] | 10…30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.5 |
| Converter frequency [kHz] | 112 |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP/NPN; (parameterisable) |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4…20 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Sensing range [mm] | 250…2500; (Target: 400 x 400 mm) |
|---|---|
| Blind zone [mm] | 250 |
| Angle of aperture cylindrical [°] | 12; (±2) |
| Max. deviation from the 90° angle sensor/object [°] | ± 4 |
| Temperature compensation | yes |
|---|---|
| Hysteresis [%] | < 3 |
| Linearity error of analogue output [%] | <3 |
| Temperature drift | ± 5 %; (of the final value of the measuring range) |
| Repeatability | 1 % |
| Resolution [mm] | 3 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
| Response time [s] | analogue output |
|---|---|
| Response time [ms] | < 600 |
| Parameter setting options | hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
|---|
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel | ||||||||
| SIO mode | yes | ||||||||
| Required master port type | A | ||||||||
| Min. process cycle time [ms] | 3.2 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
| Ambient temperature [°C] | -10…60 |
|---|---|
| Storage temperature [°C] | -15…65 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||||
| Shock resistance |
|
||||||||||
| MTTF [years] | 103 |
| Weight [g] | 258.1 |
|---|---|
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 103 |
| Thread designation | M30 x 1.5 |
| Materials | stainless steel (1.4404 / 316L); LED window: TPU; potting: PUR |
| Tightening torque [Nm] | 100 |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
