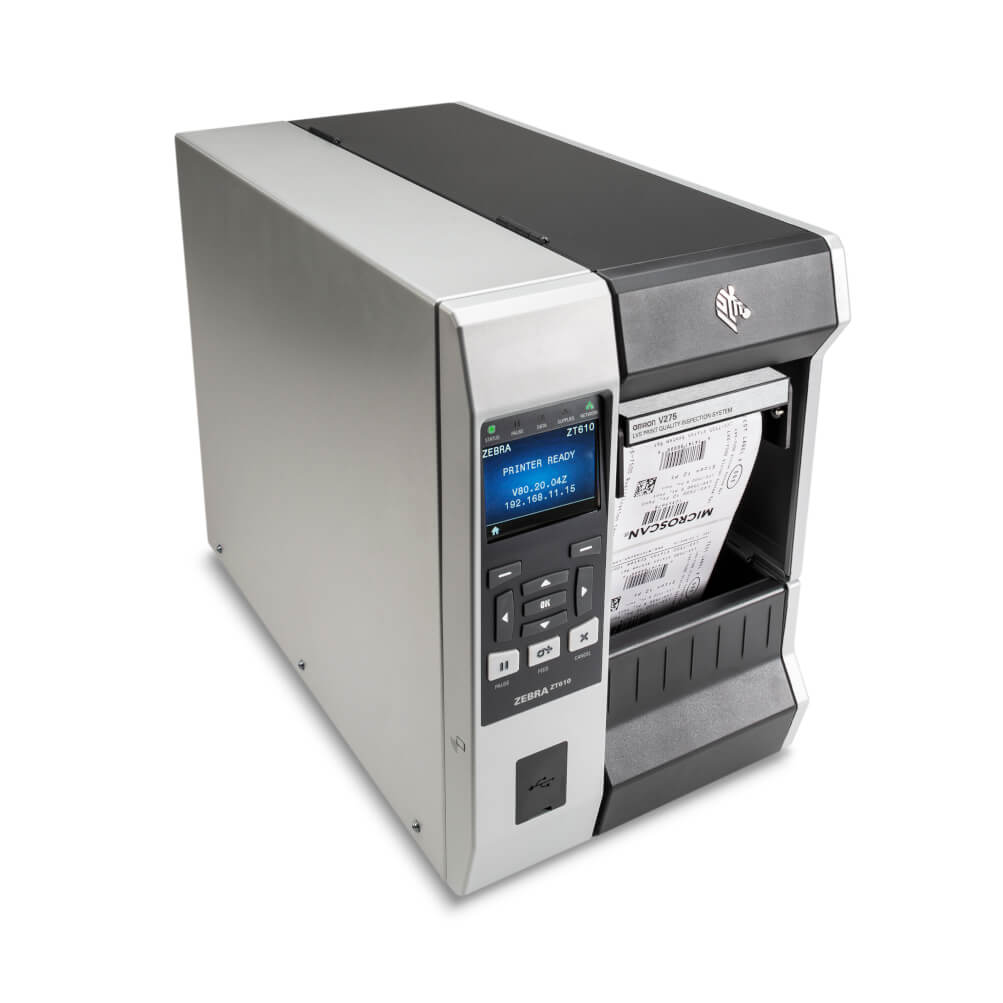

V275 print quality inspection engine, integrated into a 300 dpi resolution Zebra ZT620 printer, print and verify labels up to 168 mm wide at speeds up to 203 mm per second.
| In-line print quality inspection system | ✔ |
| Sensor | 600 dpi line scan camera |
| Printer operation | Continuous, Tear-off |
| Printer model | ZT620 |
| Printer resolution | 300 dpi |
| Decoder type | 1D, 2D |
| Functions | Blemish detection, OCR, OCV |
| Max. inspection speed | 203 mm/s |
| Max. inspection width | 168 mm |
| Max. web width | 180 mm |
| Min. inspection width | 25 mm |
| Max. label length | 305 mm |
| Min. label length | 20 mm |
| Max. media thickness | 0.28 mm |
| Min. media thickness | 0.05 mm |
| V275-ACEAN029-01 | V275 calibration conformance test card, 6″, serialized, undated |
|
|
| V275-ALCBL0ZT | V275 light tower cable, unterminated, for ZEBRA ZT |
|
|
| V275-ALRYGZZT | Light tower for use with the V275. Includes light tower and cable for connecting with Zebra printer. |
|
|
| V275-APIQOQ03-01 | V275 IQ/OQ/PQ procedure, 300 & 600 DPI printers |
|
| V275-RRH06ZEB | Kit, V275, 6″ read head replacement for ZEBRA ZT |
|
|
| V275-RRPC0ZEB | Kit, V275, ZEBRA ZT rear panel cable |
|
Datasheet
EN PDF
