| Nominal width of Laval nozzle | 1.4 mm |
| Width dimension | 18 mm |
| Muffler construction type | Open |
| Mounting position | Any |
| Ejector characteristics | StandardHigh negative pressure |
| Manual override | Non-detenting |
| Integrated function | Ejector pulse valve, pneumaticShut off valve, electricPneumatic muffler open |
| Structural design | T-shape |

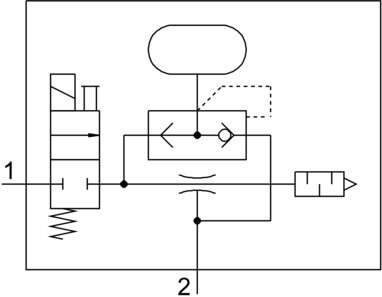

| Symbol | 00991944 |
| Valve function | 2/2 |
| Operating pressure for max. suction rate | 4 bar |
| Operating pressure | 2 bar … 8 bar |
| Operating pressure for max. vacuum | 3.5 bar |
| Max. vacuum | 92 % |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 48.8 l/min |
| Air supply time at nominal operating pressure | 0.5 s |
| DC operating voltage range | 21.6 V … 26.4 V |
| Electrical power consumption | 1.2 W |
| Duty cycle | 100% |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Temperature of medium | 0 °C … 50 °C |
| Noise level at nominal operating pressure | 69 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 100 g |
| Electrical connection | Plug |
| Type of mounting | With through-holeWith H-railWith accessories |
| Pneumatic connection 1 | QS-8 |
| Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | QS-8 |
| Material of connecting thread | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Seals material | NBR |
| Female nozzle material | POM |
| Housing material | PA-reinforcedPOM-reinforced |
| Muffler material | Wrought aluminum alloyPOMPU foam |
| Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy |
| Material of pneumatic fitting | BrassNickel-plated |
