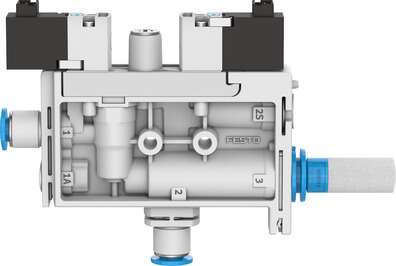

| Nominal width of Laval nozzle | 0.95 mm |
| Width dimension | 15 mm |
| Muffler construction type | Closed |
| Mounting position | Any |
| Ejector characteristics | High vacuumStandard |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |
| Integrated function | Electric ejector pulseFlow controlShut off valve, electricCompressed air filterMuffler, closed |
| Structural design | T-shape |

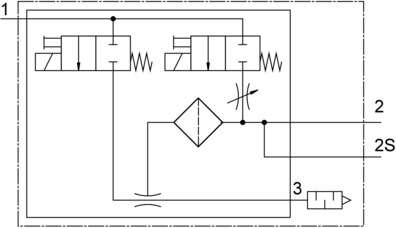

| Symbol | 00995808 |
| Valve function | Closed |
| Operating pressure for max. suction rate | 0.4 MPa |
| Operating pressure for max. suction rate | 4 bar |
| Operating pressure for max. suction rate | 58 psi |
| Operating pressure | 2 bar … 7 bar |
| Operating pressure for max. vacuum | 0.41 MPa |
| Operating pressure for max. vacuum | 4.1 bar |
| Operating pressure for max. vacuum | 59.45 psi |
| Max. vacuum | 92 % |
| Nominal operating pressure | 0.4 MPa |
| Nominal operating pressure | 4 bar |
| Nominal operating pressure | 58 psi |
| Max. suction rate with respect to atmosphere | 21 l/min |
| Air supply time at nominal operating pressure with ejector pulse | 1 s |
| DC operating voltage range | 21.6 V … 26.4 V |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 1.0 W |
| Certification | c UL us – Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0 °C … 50 °C |
| Noise level at nominal operating pressure | 56 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 57 g |
| Electrical connection input, function | Ejector pulseVacuum generator |
| Electrical connection input, connection type | 2x plugs |
| Electrical input connection, connection technology | Connection diagram H |
| Electrical connection, input, number of pins/wires | 2 |
| Electrical connection for input, connection pattern | 00995626 |
| Electrical input connection, mounting type | Snap-locking |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
| Pneumatic connection 3 | Muffler, closed |
| Vacuum connection | For pneumatic tubing outside diameter 6 mm |
| Material of connecting thread | POM |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Female nozzle material | POM |
| Compressed air filter material | POM |
| Housing material | PA-reinforced |
| Material of adjusting screw | Steel |
| Muffler material | PA-reinforcedPE |
| Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy |
