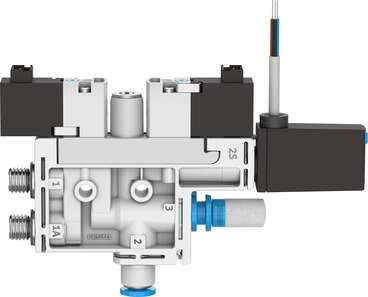

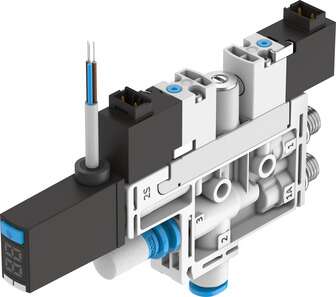

| Nominal width of Laval nozzle | 0.45 mm |
| Width dimension | 10 mm |
| Muffler construction type | Closed |
| Mounting position | Any |
| Ejector characteristics | High vacuumStandard |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |
| Integrated function | Electric ejector pulseFlow controlPressure sensorShut off valve, electricCompressed air filterMuffler, closed |
| Structural design | T-shape |
| Switching element function | N/C contact/N/O contact switchable |
| Switching function | Freely programmable |

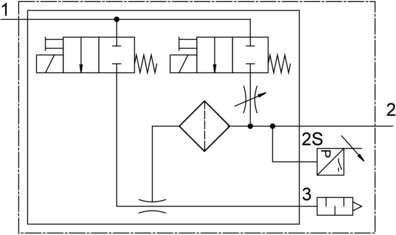

| Symbol | 00995804 |
| Valve function | Closed |
| Method of measurement | Piezoresistive pressure sensor with display |
| Display type | LED display2-digit |
| Setting options | IO-Link®Teach-inVia display and pushbuttons |
| Operating pressure for max. suction rate | 0.3 MPa |
| Operating pressure for max. suction rate | 3 bar |
| Operating pressure for max. suction rate | 43.5 psi |
| Operating pressure | 2 bar … 7 bar |
| Operating pressure for max. vacuum | 0.44 MPa |
| Operating pressure for max. vacuum | 4.4 bar |
| Operating pressure for max. vacuum | 63.8 psi |
| Max. vacuum | 89 % |
| Nominal operating pressure | 0.4 MPa |
| Nominal operating pressure | 4 bar |
| Nominal operating pressure | 58 psi |
| Max. suction rate with respect to atmosphere | 4 l/min |
| Air supply time at nominal operating pressure with ejector pulse | 2 s |
| DC operating voltage range | 21.6 V … 26.4 V |
| Duty cycle | 100% |
| Switching output | PNP/NPN switchable |
| Coil characteristics | 24 V DC: 1.0 W |
| Certification | c UL us – Listed (OL) |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0 °C … 50 °C |
| Noise level at nominal operating pressure | 51 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 75 g |
| DC sensor operating voltage range | 18 V … 30 V |
| Pressure measuring range | -0.1 MPa … 0 MPa |
| Pressure measuring range | -1 bar … 0 bar |
| Pressure measuring range | -14.5 psi … 0 psi |
| Electrical connection input, function | Ejector pulseVacuum generator |
| Electrical connection input, connection type | 2x plugs |
| Electrical input connection, connection technology | Connection diagram H |
| Electrical connection, input, number of pins/wires | 2 |
| Electrical connection for input, connection pattern | 00995626 |
| Electrical input connection, mounting type | Snap-locking |
| Electrical connection output, function | Sensor |
| Electrical connection output, connection type | Cable |
| Electrical connection output, connection technology | Open end |
| Electrical output connection, number of pins/wires | 3 |
| Cable characteristic | Suitable for energy chains |
| Cable diameter | 2.9 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable length | 2.5 m |
| Nominal conductor cross section | 0.14 mm² |
| Type of mounting | On terminal strip |
| Pneumatic connection 1 | Common port |
| Pneumatic connection 3 | Muffler, closed |
| Vacuum connection | For pneumatic tubing outside diameter 4 mm |
| Color cable sheath | Gray |
| Material of connecting thread | POM |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Female nozzle material | POM |
| Compressed air filter material | POM |
| Housing material | PA-reinforced |
| Hollow bolt material | Wrought aluminum alloy |
| Material of cable sheath | PVC |
| Material of adjusting screw | Steel |
| Muffler material | PA-reinforcedPE |
| Material of screws | Steel |
| Material of jet nozzle | Wrought aluminum alloy |
