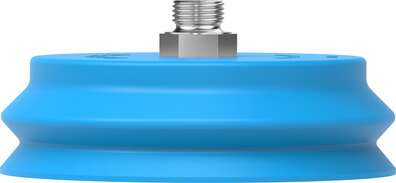

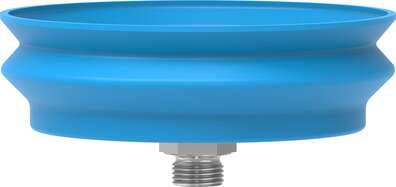

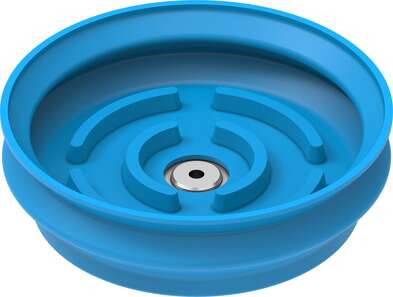

Vacuum suction cup

GTIN: 4052568105693

1396066

SKU: VASB-100-1/4-PUR-B

Description

Suction cup height compensation 15.5 mm
Nominal width 4 mm
Suction cup diameter 100 mm
Suction cup volume 128 cm³
Effective suction cup diameter 90.5 mm
Connection position Top
Mounting position Any
Symbol 00991485
Suction cup shape Round bellows, 1.5 convolutions
Operating pressure -0.95 bar … 0 bar
Nominal operating pressure -0.7 bar
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Ambient temperature -20 °C … 60 °C
Holding force at nominal operating pressure 450 N
Product weight 155 g
Type of mounting Via vacuum connection
Vacuum connection G1/4
Color Blue
Shore hardness 60 +/- 5
Material of screwed trunnion Die-cast zinc
Note on materials RoHS-compliant
Suction cup material PUR
