| Suction cup height compensation | 25 mm |
| Nominal width | 7 mm |
| Suction cup diameter | 125 mm |
| Suction cup volume | 307 cm³ |
| Connection position | Top |
| Mounting position | Any |
| Symbol | 00991485 |

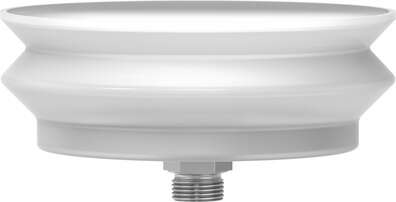

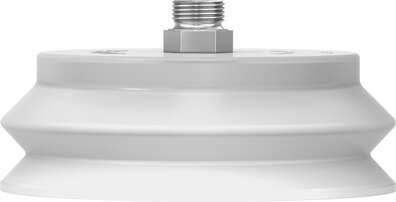

| Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -0.95 bar … 0 bar |
| Nominal operating pressure | -0.7 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| For use in the food industry | See supplementary material information |
| Ambient temperature | -40 °C … 200 °C |
| Holding force at nominal operating pressure | 610 N |
| Product weight | 247 g |
| Type of mounting | Via vacuum connection |
| Vacuum connection | G3/8 |
| Color | Transparent |
| Shore hardness | 60 +/- 5 |
| Material of screwed trunnion | Wrought aluminum alloy |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Suction cup material | VMQ (silicone) |
