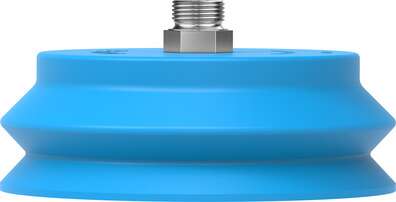

Vacuum suction cup

GTIN: 4052568105709

1396067

SKU: VASB-125-3/8-PUR-B

Description

Suction cup height compensation 25 mm
Nominal width 7 mm
Suction cup diameter 125 mm
Suction cup volume 307 cm³
Effective suction cup diameter 101.8 mm
Connection position Top
Mounting position Any
Symbol 00991485
Suction cup shape Round bellows, 1.5 convolutions
Operating pressure -0.95 bar … 0 bar
Nominal operating pressure -0.7 bar
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Ambient temperature -20 °C … 60 °C
Holding force at nominal operating pressure 570 N
Product weight 294 g
Type of mounting Via vacuum connection
Vacuum connection G3/8
Color Blue
Shore hardness 60 +/- 5
Material of screwed trunnion Die-cast zinc
Note on materials RoHS-compliant
Suction cup material PUR
