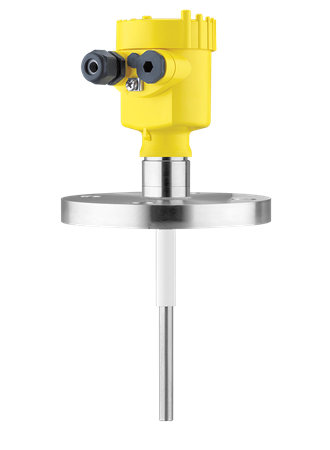

VEGACAL 62

VEGACAL 62 - Image 2

VEGACAL 62

Application area

For measurement of bulk solids and non-conductive liquids such as oil. A full/empty adjustment is necessary for setup.

The VEGACAL 62 is a level sensor for continuous level measurement in all industries. The partly insulated probe is designed for measurement of bulk solids and can be also used in non-conductive liquids such as e.g. oil. The proven construction offers high functional safety.

Your benefit

High flexibility through shortenable probe
Long lifetime and low maintenance requirement through robust mechanical construction
Maximum utilization of the vessel because measurement over the complete probe length

SKU: VEGACAL 62

Description

Technical specifications

Measuring range – Distance

6 m [Meter – Foot]

Process temperature

-50 … 200 °C [°C – °F]

Process pressure

-1 … 64 bar [Bar – kPa – psi]

Version

with screening tube PN1

with concentric tube

Standard

Materials, wetted parts

PTFE

316L

Alloy 400 (2.4360)

PEEK

Steel C22.8

Threaded connection

≥ G½, ≥ ½ NPT

Flange connection

≥ DN25, ≥ 1″

Seal material

no media contact

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART – two-wire

Ambient temperature

-40 … 80 °C

Approvals

Scope

ATEX / Europe

CSA / Canada

FM / USA

EAC (GOST) / Belarus

EAC (GOST) / Kazakhstan

EAC (GOST) / Russia

IEC / worldwide

KOSHA / Korea

NEPSI / China

UKR Sepro / Ukraine

INMETRO / Brazil

Explosion protection

Intrinsic safety “i”

Dust explosion protection through housing “t”

Foodstuffs/Pharma

FDA

Ship approval

ABS

BV

CCS

DNV

GL

LR

RINA

RMROS

Overfill protection

WHG

VLAREM II

SIL qualification

SIL2

Display & adjustment

Adjustment

PLICSCOM

PC, PACTware and DTM

HART-Communicator

Software (e. g. AMS™, PDM)

Indication

Display/adjustment module PLICSCOM

VEGADIS 81

VEGADIS 82
