VEGACAL 65

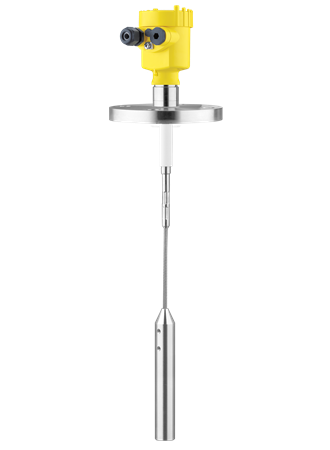

VEGACAL 65 - Image 2

VEGACAL 65

Application area

For measurement of bulk solids and can also be used in non-conductive liquids such as oil. A full/empty adjustment is necessary for setup.
The VEGACAL 65 is a level sensor for use in all industries. The partly insulated probe is ideal for the measurement of bulk solids and can be also used in non-conductive liquids such as for example oil. The proven mechanical construction offers high functional safety.

Your benefit

  • High flexibility through shortenable probe
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Maximum utilization of the vessel because measurement over the complete probe length

SKU: VEGACAL 65

Add to Cart

Description

Technical specifications
Measuring range – Distance
32 m [Meter – Foot]

Process temperature
-50 … 200 °C [°C – °F]

Process pressure
-1 … 64 bar [Bar – kPa – psi]

Version
Cable ø 6 mm with screening tube without weight
Cable ø 6 mm with screening tube and gravity weight
Cable ø 6 mm with crimping sleeve
Cable ø 6 mm with crimping sleeve and screening tube
Cable ø 6 mm with gravity weight
Cable ø 6 mm without weight
Cable ø 8 mm with abrasion protection without weight
Cable ø 8 mm with abrasion protection and gravity weight
Cable ø 8 mm with gravity weight

Materials, wetted parts
PTFE
316L
Alloy 400 (2.4360)
PA
PEEK
Steel C22.8

Threaded connection
≥ G1, ≥ 1 NPT

Flange connection
≥ DN50, ≥ 2″

Seal material
no media contact

Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)

Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)

Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire

Ambient temperature
-40 … 80 °C

Approvals
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil

Explosion protection
Intrinsic safety “i”
Dust explosion protection through housing “t”

Ship approval
ABS
BV
CCS
DNV
GL
LR
RINA
RMROS

Overfill protection
WHG
VLAREM II

SIL qualification
SIL2

Display & adjustment
Adjustment
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)

Indication
Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82
