VEGACAP 65

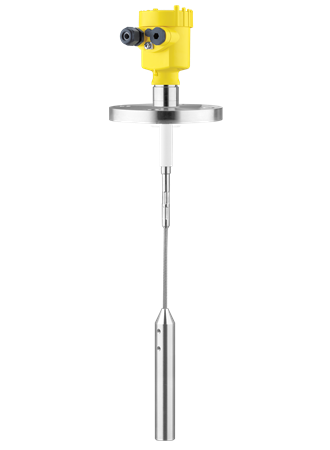

VEGACAP 65 - Image 2

VEGACAP 65

Application area

For liquids and bulk solids, Sensor length up to 32 m
The VEGACAP 65 is a point level sensor for use in all industries. The partly insulated probe is suitable for the measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.

Your benefit

  • High flexibility through shortenable probe
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Reliable switching point due to large gravity weight

SKU: VEGACAP 65

Add to Cart

Description

Technical specifications
Measuring range – Distance
– [Meter – Foot]

Process temperature
-50 … 200 °C [°C – °F]

Process pressure
-1 … 64 bar [Bar – kPa – psi]

Version
Cable ø 6 mm with screening tube without weight
Cable ø 6 mm with screening tube and gravity weight
Cable ø 6 mm with gravity weight
Cable ø 8 mm with abrasion protection without weight
Cable ø 8 mm with abrasion protection and gravity weight
Cable ø 8 mm with gravity weight
PA cable ø 12 mm with screening tube and gravity weight

Materials, wetted parts
PTFE
316L
PA
PEEK
Steel

Threaded connection
≥ G1, ≥ 1 NPT

Flange connection
≥ DN50, ≥ 2″

Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)

Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)

Output
Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire

Ambient temperature
-40 … 80 °C

Approvals
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine

Explosion protection
Intrinsic safety “i”
Dust explosion protection through housing “t”

Ship approval
ABS
BV
CCS
DNV
GL
LR
RINA
RMROS

Overfill protection
WHG
VLAREM II

SIL qualification
SIL2

Display & adjustment
Indication
Pluggable display module PLICSLED
