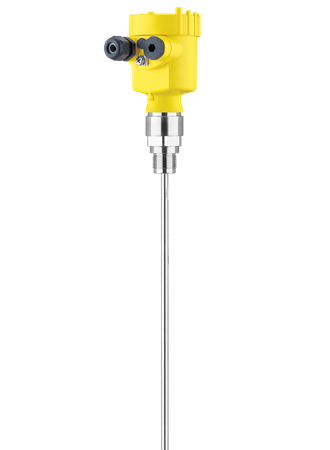

VEGAFLEX 81 - Image 2

VEGAFLEX 81

Application area

Cable, rod or coaxial sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings – also in standpipes or bypass pipes.

The VEGAFLEX 81 level sensor measures maintenance-free all kind of liquids. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 81 is the economical solution for various level and interface measurements.

Your benefit

The guided adjustment enables a simple, time-saving and reliable setup
Shortenable probes offer a simple standardisation and highest flexibility in the planning
Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability

SKU: VEGAFLEX 81

Description

Technical specifications

Measuring range – Distance

75 m [Meter – Foot]

Process temperature

-60 … 200 °C [°C – °F]

Process pressure

-1 … 40 bar [Bar – kPa – psi]

Accuracy

± 2 mm

Version

Basic version for exchangeable cable ø 2; ø 4 mm

Basic version for exchangeable rod ø 8 mm

Basic version for exchangeable rod ø 12 mm

Coax version ø 21.3 mm for ammonia application

Coax version ø 21.3 mm with single hole

Coax version ø 21.3 mm with multiple hole

Coax version ø 42.2 mm with multiple hole

Exchangeable rod ø 8 mm

Exchangeable rod ø 12 mm

Exchangeable cable ø 2 mm with gravity weight

Exchangeable cable ø 4 mm with gravity weight

Exchangeable cable ø 2 mm with centering weight

Exchangeable cable ø 4 mm with centering weight

Exchangeable cable ø 4 mm without weight

exchangeable, PFA-coated cable ø4 mm with non-coated centering weight

Materials, wetted parts

PFA

316L

Alloy C22 (2.4602)

Alloy 400 (2.4360)

Alloy C276 (2.4819)

Duplex (1.4462)

304L

Threaded connection

≥ G¾, ≥ ¾ NPT

Flange connection

≥ DN25, ≥ 1″

Seal material

EPDM

FKM

FFKM

Silicone FEP coated

Borosilicate glass

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Profibus PA

Foundation Fieldbus

4 … 20 mA/HART – two-wire

Modbus

4 … 20 mA/HART – four-wire

Ambient temperature

-40 … 80 °C

Approvals

Scope

ATEX / Europe

CSA / Canada

FM / USA

EAC (GOST) / Belarus

EAC (GOST) / Kazakhstan

EAC (GOST) / Russia

IEC / worldwide

NEPSI / China

UKR Sepro / Ukraine

INMETRO / Brazil

CCOE / India

Explosion protection

Intrinsic safety “i”

Flameproof enclosure “d”

Dust explosion protection through housing “t”

Foodstuffs/Pharma

FDA

Ship approval

ABS

BV

CCS

DNV

GL

LR

NK

RINA

Overfill protection

WHG

VLAREM II

SIL qualification

SIL2

Display & adjustment

Adjustment

PLICSCOM

PC, PACTware and DTM

HART-Communicator

Software (e. g. AMS™, PDM)

Indication

Display/adjustment module PLICSCOM

VEGADIS 81

VEGADIS 82
