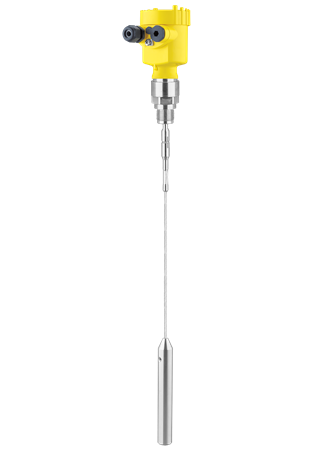

VEGAFLEX 82
VEGAFLEX 82 - Image 2

VEGAFLEX 82

Application area

Cable or rod sensor. Even in applications with large amounts of dust, condensation or buildup, the sensor delivers precise and reliable readings.
The VEGAFLEX 82 level sensor measures maintenance-free light and heavy-weight bulk solids. Even in applications with strong dust generation, condensation or buildup, the sensor delivers precise and reliable measured values. The VEGAFLEX 82 is an economical and reliable solution for your application.

Your benefit

  • The guided adjustment enables a simple, time-saving and reliable setup
  • Shortenable probes offer a simple standardisation and highest flexibility in the planning
  • Virtually all bulk solids can be measured with the automatic probe end tracking

SKU: VEGAFLEX 82

Add to Cart

Description

Technical specifications
Measuring range – Distance
75 m [Meter – Foot]

Process temperature
-40 … 200 °C [°C – °F]

Process pressure
-1 … 40 bar [Bar – kPa – psi]

Accuracy
± 2 mm

Version
Basic version for exchangeable cable ø 4, ø 6 PA coat.
Basic version for exchangeable cable ø 6, ø11 PA coat., rod ø16
Exchangeable rod ø 16 mm
Exchangeable cable ø 2 mm with gravity weight
Exchangeable cable ø 6 mm with gravity weight
Exchangeable, PA-coated steel cable ø 6 mm with gravity weight
Exchangeable, PA-coated steel cable ø 11 mm with gravity weight

Materials, wetted parts
316L
Alloy C22 (2.4602)
PA

Threaded connection
≥ G¾, ≥ ¾ NPT

Flange connection
≥ DN25, ≥ 1″

Seal material
EPDM
FKM
FFKM

Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)

Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)

Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire
Modbus
4 … 20 mA/HART – four-wire

Ambient temperature
-40 … 80 °C

Approvals
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India

Explosion protection
Intrinsic safety “i”
Flameproof enclosure “d”
Dust explosion protection through housing “t”

Ship approval
ABS
BV
CCS
DNV
GL
LR
NK
RINA

Overfill protection
WHG
VLAREM II

SIL qualification
SIL2

Display & adjustment
Adjustment
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)

Indication
Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82
