VEGAFLEX 83

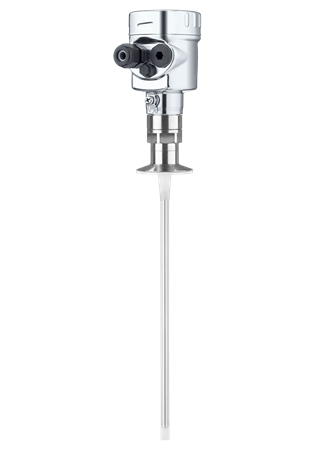

VEGAFLEX 83 - Image 2

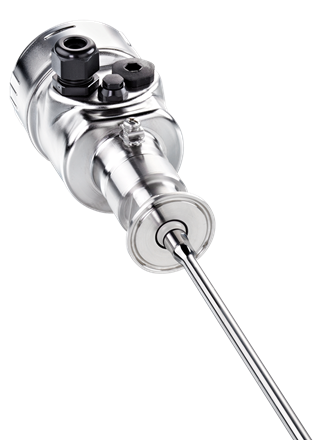

VEGAFLEX 83 - Image 3

VEGAFLEX 83

Application area

PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings.
The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

Your benefit

  • The gap-free hygienic design ensures simple and reliable cleanability
  • The maintenance-free operation increases the plant efficiency
  • The guided adjustment enables a simple, time-saving and reliable setup

SKU: VEGAFLEX 83

Add to Cart

Description

Technical specifications
Measuring range – Distance
32 m [Meter – Foot]

Process temperature
-40 … 150 °C [°C – °F]

Process pressure
-1 … 16 bar [Bar – kPa – psi]

Accuracy
± 2 mm

Version
Rod ø 10 mm, PFA-coated
Exchangeable rod ø 8 mm, polished
Exchangeable rod ø 8 mm, electropolished
Exchangeable rod ø 8 mm, electropolished, can be autoclaved
Cable ø 4 mm with gravity weight, PFA-coated

Materials, wetted parts
PFA
316L
TFM-PTFE

Flange connection
≥ DN25, ≥ 1″

Hygenic fittings
Clamp ≥ 2″, DN50 – DIN32676, ISO2852
Clamp ≥ 3″, DN65 – DIN32676, ISO2852
Slotted nut ≥ 1½”, ≥ DN40 – DIN 11851
Slotted nut ≥ 2″, DN50 – DIN 11851
Varivent ≥ DN25
Hygienice flange connection ≥ DN50 DIN11864-2
Swagelok VCR screwing
Hygienic collar clamp ≥ DN33 – DIN 11864-3
Safety ingold

Seal material
EPDM
FKM
FEPM

Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)

Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)

Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire
Modbus
4 … 20 mA/HART – four-wire

Ambient temperature
-40 … 80 °C

Approvals
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India

Explosion protection
Intrinsic safety “i”
Flameproof enclosure “d”
Dust explosion protection through housing “t”

Foodstuffs/Pharma
EHEDG
FDA

Ship approval
Ship approval

Overfill protection
WHG
VLAREM II

SIL qualification
SIL2

Display & adjustment
Adjustment
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)

Indication
Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82
