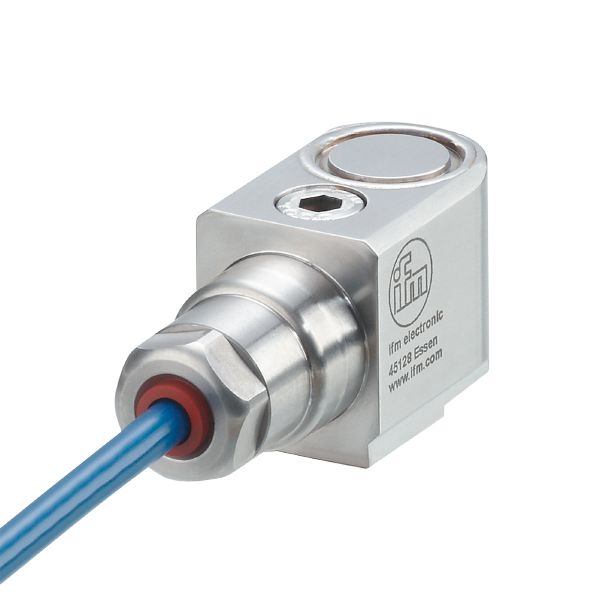

VSP01A

Description

Product characteristics

Measuring range of vibration [g]	-50…50
Frequency range [Hz]	2…10000
Measuring principle	piezoelectric

Application

Design	for connection to external diagnostic electronics VSExxx

Electrical data

Switching amplifiers	connection to intrinsically safe supply isolators (Ex ia)
Operating voltage [V]	10…12 DC
Current consumption [mA]	0.5…8
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Outputs

Measuring/setting range

Measuring range of vibration [g]	-50…50
Frequency range [Hz]	2…10000
Measuring principle	piezoelectric
Sensitivity [mV/g]	100
Noise density [mg]	0.1
Max. transverse sensitivity [%]	5
Minimum measuring time [s]	2
Number of measurement axes	1

Operating conditions

Ambient temperature [°C]	-55…90
Storage temperature [°C]	-55…90
Protection	IP 68; (water-proof up to: 100 m 10 bar; restrictions for 1D applications: IP 65)

Tests / approvals

Approval

Baseefa12ATEX0248X; IECEx BAS 12.0133 X

ATEX marking

II 1G Ex ia IIC T4 Ga (-55°C < Ta < +90°C)

II 1D Ex ia IIIC T110°C IP65 Da (-55°C < Ta < +90°C)

II 1G Ex ia IIC T6 Ga (-55°C < Ta < +60°C)

II 1D Ex ia IIIC T80°C IP65 Da (-55°C < Ta < +60°C)

EMC

EN 61000-6-2	2005
EN 61000-6-4	2007

Shock resistance

5000 g

Mechanical data

Accessories

Accessories (optional)

Safety barrier, ZB0633

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR
