WHI HSK-A100 Ø6×90

Description

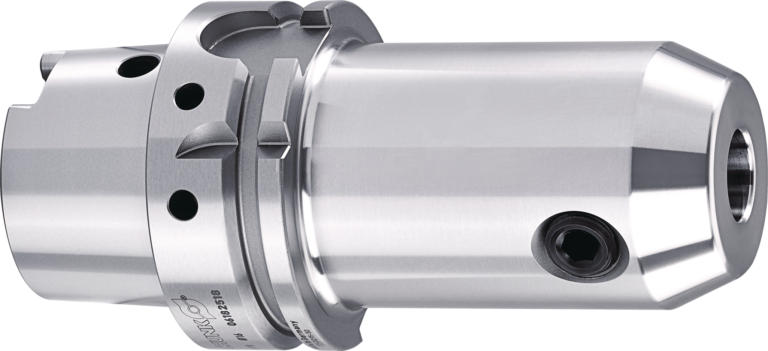

WHI HSK-A100 Ø6×90, Toolholders

Whistle Notch Mountings
Series: Whistle Notch Mountings
Toolholder interface: HSK-A 100
Clamping diameter: 6 mm
Projecting length: 90 mm
Run-out accuracy: ≤ 0.003 mm measured from taper to D₁
Balancing grade: G6.3 at 8,000 RPM or U_max < 1 gmm

Scope of delivery: Includes clamping screw and length adjustment screw

Version
For clamping tools with cylindrical shanks as per DIN 1835E/6359HE
Run-out accuracy
≤ 0.003 mm measured from taper to D₁
Balancing grade
G6.3 at 8,000 RPM or U_max < 1 gmm
Thread G1
G₁ = thread for clamping screw
Data Carrier
Bore holes for data carriers according to DIN 69873
Toolholder changes
For automatic toolholder changes
Scope of delivery
Includes clamping screw and length adjustment screw
Individual
Additional sizes and customized designs are available upon request

26 MB 26 MB
2 MB 2 MB
29 MB 29 MB
1 MB 1 MB
5 MB 5 MB
256 KB 256 KB

Technology	Whistle Notch Mountings
Series	Whistle Notch Mountings
Toolholder interface	HSK-A 100
Toolholder standard	DIN ISO 12164-1
Clamping diameter D1	6 mm
D2 [mm]	25
D6 [mm]	14.5
Projecting length L1 [mm]	90
L2 [mm]	36.5
L3 [mm]	10
L4 [mm]	61
G	M5
G1	M6
Weight [kg]	2.369
