| Max. cable length | 3 m |
| User memory | 3 GB |

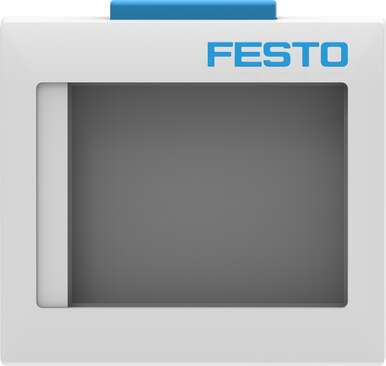

| Display | Color TFT |
| Display properties | Touchscreen |
| Display size | 1.77″ |
| DC operating voltage range | 4.5 V … 5.5 V |
| Display resolution | 128×160 pixels |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCTo UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 °C … 70 °C |
| Relative air humidity | Max. 95 % at 60 °CNon-condensing |
| Degree of protection | IP20 |
| Ambient temperature | 0 °C … 60 °C |
| Product weight | 36.6 g |

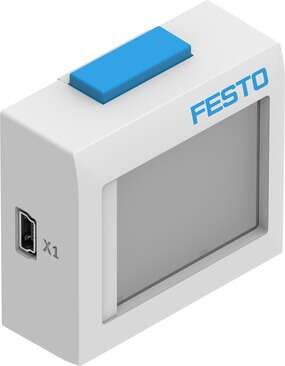

| USB interface | USB 2.0 type B, mini |
| Note on materials | RoHS-compliant |
| Housing material | PA6-reinforced |
| Area of application | Only with CMMT, CPX-E-CEC |
| Dimensions W x L x H | 50 mm x 45 mm x 19.6 mm |
