Specifications & ordering info
Ordering information

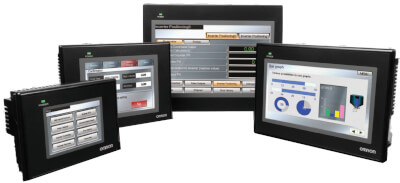

HMI panels
Product name | Specifications | Order code |
|---|---|---|
NB3Q | 3.5 inch, TFT LCD, Color, 320 ×240 dots | NB3Q-TW00B |
3.5 inch, TFT LCD, Color, 320 ×240 dots, USB Host, Ethernet | NB3Q-TW01B | |
NB5Q | 5.6 inch, TFT LCD, Color, 320 ×234 dots | NB5Q-TW00B |
5.6 inch, TFT LCD, Color, 320 ×234 dots, USB Host, Ethernet | NB5Q-TW01B | |
NB7W | 7 inch, TFT LCD, Color, 800 ×480 dots | NB7W-TW00B |
7 inch, TFT LCD, Color, 800 ×480 dots, USB Host, Ethernet | NB7W-TW01B | |
NB10W | 10.1 inch, TFT LCD, Color, 800 ×480 dots, USB Host, Ethernet | NB10W-TW01B |
Options
Product item | Specifications | Order code |
|---|---|---|
NB-to-PLC Connecting cable | For NB to PLC via RS-232C (CP/CJ/CS), 2m | XW2Z-200T |
For NB to PLC via RS-232C (CP/CJ/CS), 5m | XW2Z-500T | |
For NB to PLC via RS-422A/485, 2m | NB-RSEXT-2M | |
Software | Supported Operating Systems: Windows 10 (32-bit and 64-bit edition) and previous Windows versions. Download from the Omron website. | NB-Designer |
Display protective sheets | For the NB3Q contains 5 sheets | NB3Q-KBA04 |
For the NB5Q contains 5 sheets | NB5Q-KBA04 | |
For the NB7W contains 5 sheets | NB7W-KBA04 | |
For the NB10W contains 5 sheets | NB10W-KBA04 | |
Attachment | Mounting bracket for NT31/NT31C series to NB5Q series | NB5Q-ATT01 |
Model | Panel cutout (H × V mm) |
|---|---|
NB3Q | 119.0 (+0.5/−0) × 93.0 (+0.5/−0) |
NB5Q | 172.4 (+0.5/−0) × 131.0 (+0.5/−0) |
NB7W | 191.0 (+0.5/−0) × 137.0 (+0.5/−0) |
NB10W | 258.0 (+0.5/−0) × 200.0 (+0.5/−0) |
Note: Applicable panel thickness: 1.6 to 4.8 mm.
Specifications
HMI
Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
Display type | 3.5 inch TFT LCD | 5.6 inch TFT LCD | 7 inch TFT LCD | 10.1 inch TFT LCD | |||
Display resolution (H×V) | 320×240 | 320×234 | 800×480 | 800×480 | |||
Number of colors | 65,536 | ||||||
Backlight | LED | ||||||
Backlight lifetime | 50,000 hours of operating time at the normal temperature (25 ° C) 1 | ||||||
Touch panel | Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations | ||||||
Dimensions in mm (H×W×D) | 103.8×129.8×52.8 | 142×184×46 | 148×202×46 | 210.8×268.8×54.0 | |||
Weight | 310 g max. | 315 g max. | 620 g max. | 625 g max. | 710 g max. | 715 g max. | 1,545 g max. |
Functionality
Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
Internal memory | 128MB (including system area) | ||||||
Memory interface | − | USB | − | USB | − | USB | USB |
Serial (COM1) | RS-232C/422A/485 (not isolated), | RS-232C, | |||||
Serial (COM2) | − | RS-232C/422A/485 (not isolated), 500m Max. (RS-422A/485), Connector: D-Sub 9-pin | |||||
USB Host | Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA | ||||||
USB Slave | Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m | ||||||
Printer connection | PictBridge support | ||||||
Ethernet | − | 10/100 base-T | − | 10/100 base-T | − | 10/100 base-T | 10/100 base-T |
General
Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
Line voltage | 20.4 to 27.6 VDC (24 VDC −15 to 15%) | ||||||
Power consumption | 5 W | 9 W | 6 W | 10 W | 7 W | 11 W | 14 W |
Battery lifetime | 5 years (at 25 ° C) | ||||||
Enclosure rating (front side) | Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | ||||||
Obtained standards | EC Directives, KC, cUL508 | ||||||
Operating environment | No corrosive gases. | ||||||
Noise immunity | Compliant with IEC61000-4-4, 2KV (Power cable) | ||||||
Ambient operating temperature | 0 to 50 ° C | ||||||
Ambient operating humidity | 10% to 90% RH (without condensation) | ||||||
Applicable Controllers
Brand | Series |
|---|---|
OMRON | Omron C Series Host Link |
Omron CJ/CS Series Host Link | |
Omron CP Series | |
Mitsubishi | Mitsubishi Q_QnA (Link Port) |
Mitsubishi FX-485ADP/485BD/422BD (Multi-station) | |
Mitsubishi FX0N/1N/2N/3G | |
Mitsubishi FX1S | |
Mitsubishi FX2N-10GM/20GM | |
Mitsubishi FX3U | |
Mitsubishi Q series (CPU Port) | |
Mitsubishi Q00J (CPU Port) | |
Mitsubishi Q06H | |
Panasonic | FP series |
Siemens | Siemens S7-200 |
Siemens S7-300/400 (PC Adapter Direct) | |
Allen-Bradley 2 (Rockwell) | AB DF1 AB CompactLogix/ControlLogix |
Brand | Series |
|---|---|
Schneider | Schneider Modicon Uni-TelWay |
Schneider Twido Modbus RTU | |
Delta | Delta DVP |
LG (LS) | LS Master-K Cnet |
LS Master-K CPU Direct | |
LS Master-K Modbus RTU | |
LS XGT CPU Direct | |
LS XGT Cnet | |
GE Fanuc Automation 1 | GE Fanuc Series SNP GE SNP-X |
Modbus | Modbus ASCII |
Modbus RTU | |
Modbus RTU Slave | |
Modbus RTU Extend | |
Modbus TCP |
Features
Best-in-class display
As the display is one of the most important components for an HMI we only settle with the best LCDs for our products and so also for the NB HMI. The complete family therefor is equipped with LED backlighted TFT LCDs that have a good viewing angle and brightness. Together with a large memory your HMI application can contain many images to create a very good looking application.
- LED backlighted TFT LCD
- Wide viewing angle
- More than 65,000 display colours
- 128 MB of internal memory
Smart design
When developing the NB series, we considered every aspect of the design to give you maximum flexibility. Where possible we use new technology and proven standards. Some examples are the portrait or landscape display mode and PictBridge printer connection.
- Portrait or landscape display mode
- Connection to Omron and non-Omron devices, e.g. PLCs/inverters
- Serial, USB or Ethernet connectivity
- PictBridge printer connection
