Specifications & ordering info
Ordering information
Note: The symbols ① ② ③ … show the recommended sequence to select the servomotor, cables and serial converter for a linear motors system.

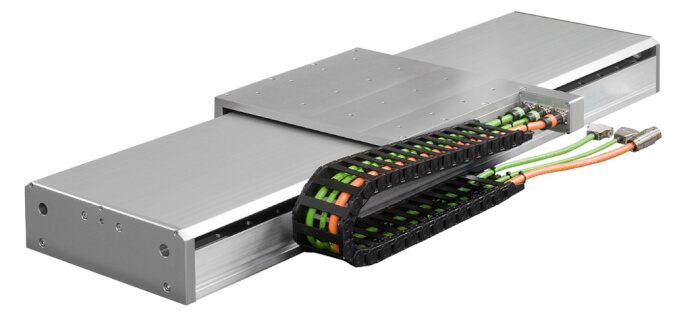

Linear motor axis
230 VAC single phase/400 VAC three phase
Servo drive
② Refer to Accurax G5 servo drive chapter for detailed drive specifications and selection of drive accessories.
Serial converter unit
Note: If no temperature sensor is needed, then it does not matter which converter you use.Serial converter cable to servo drivePower cableLinear encoder cable to serial converterHall and temperature sensors cable to serial converterConnectorsDimensions
R88L-EA-AF-0303-_ (230/400 VAC)
R88L-EA-AF-0306-_ (230/400 VAC)
R88L-EA-AF-0606-_ (230/400 VAC)
R88L-EA-AF-0609-_ (230/400 VAC)
R88L-EA-AF-06012-_ (230/400 VAC)
R88L-EA-AF-1112-_ (230/400 VAC)
R88L-EA-AF-1115-_ (230/400 VAC)
Ordering information
Note:
The symbols ①②③… show the recommended sequence to select the servomotor, cables and serial converter for a linear motors system.
Linear motor axis
230 VAC single phase/400 VAC three phase
| Symbol | Specifications | ② Linear servo drive | Order code | ||
|---|---|---|---|---|---|
| Accurax G5 EtherCAT | |||||
| Rated force | Peak force | 230 V | 400 V | ||
| ① | 48 N | 120 N | R88D-KN02H-ECT-L | R88D-KN06F-ECT-L | R88L-EA-AF-0303-⬜⬜⬜⬜-0005 |
| 96 N | 240 N | R88D-KN04H-ECT-L | R88D-KN10F-ECT-L | R88L-EA-AF-0306-⬜⬜⬜⬜-0005 | |
| 160 N | 450 N | R88D-KN08H-ECT-L | R88D-KN15F-ECT-L | R88L-EA-AF-0606-⬜⬜⬜⬜-0005 | |
| 240 N | 675 N | R88D-KN10H-ECT-L | R88D-KN20F-ECT-L | R88L-EA-AF-0609-⬜⬜⬜⬜-0005 | |
| 320 N | 900 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-0612-⬜⬜⬜⬜-0005 | |
| 608 N | 1800 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-1112-⬜⬜⬜⬜-0005 | |
| 760 N | 2250 N | R88D-KN15H-ECT-L | R88D-KN30F-ECT-L | R88L-EA-AF-1115-⬜⬜⬜⬜-0005 | |
Servo drive
② Refer to Accurax G5 servo drive chapter for detailed drive specifications and selection of drive accessories.
Encoder cable
| Symbol | Appearance | Specifications | Order code | |
|---|---|---|---|---|
| ③ |  | Encoder cable for linear motor axis (Connectors R88A-CNK41L and DB-15) | 1.5 m | R88A-CRKN001-5CR-E |
| 3 m | R88A-CRKN003CR-E | |||
| 5 m | R88A-CRKN005CR-E | |||
| 10 m | R88A-CRKN010CR-E | |||
| 15 m | R88A-CRKN015CR-E | |||
| 20 m | R88A-CRKN020CR-E | |||
Power cable
| Symbol | Appearance | Specifications | Order code | |
|---|---|---|---|---|
| ④ |  | For linear motor axis R88L-EA-AF-0303-_ R88L-EA-AF-0306-_ | 1.5 m | R88A-CAWK001-5S-DE |
| 3 m | R88A-CAWK003S-DE | |||
| 5 m | R88A-CAWK005S-DE | |||
| 10 m | R88A-CAWK010S-DE | |||
| 15 m | R88A-CAWK015S-DE | |||
| 20 m | R88A-CAWK020S-DE | |||
| For linear motor axis R88L-EA-AF-0606-_ R88L-EA-AF-0609-_ R88L-EA-AF-0612-_ R88L-EA-AF-1112-_ R88L-EA-AF-1115-_ | 1.5 m | R88A-CAWL001-5S-DE | ||
| 3 m | R88A-CAWL003S-DE | |||
| 5 m | R88A-CAWL005S-DE | |||
| 10 m | R88A-CAWL010S-DE | |||
| 15 m | R88A-CAWL015S-DE | |||
| 20 m | R88A-CAWL020S-DE | |||
Accessories for linear motor models with optional encoders (non-standard encoder)
Serial converter unit
| Specifications | Order code |
|---|---|
| Serial converter unit from 1 Vpp to G5 serial data transmission (with KTY sensor detection of iron-core motor coil) | R88A-SC01K-E |
| Serial converter unit from 1 Vpp to G5 serial data transmission (with NTC sensor detection of ironless motor coil) | R88A-SC02K-E |
Note:
If no temperature sensor is needed, then it does not matter which converter you use.
Linear encoder cable to serial converter
| Appearance | Specifications | Order code | |
|---|---|---|---|
 | Extension cable from linear encoder to -serial converter. (Connector DB-15) (This extension cable is optional) | 1.5 m | R88A-CFKA001-5CR-E |
| 3 m | R88A-CFKA003CR-E | ||
| 5 m | R88A-CFKA005CR-E | ||
| 10 m | R88A-CFKA010CR-E | ||
| 15 m | R88A-CFKA015CR-E | ||
Hall and temperature sensors cable to serial converter
| Appearance | Specifications | Order code | |
|---|---|---|---|
 | Extension cable from hall and temperature sensors to serial converter. (Connector DB-9) (This extension cable is optional) | 1.5 m | R88A-CFKB001-5CR-E |
| 3 m | R88A-CFKB003CR-E | ||
| 5 m | R88A-CFKB005CR-E | ||
| 10 m | R88A-CFKB010CR-E | ||
| 15 m | R88A-CFKB015CR-E | ||
Connectors
| Specification | Order code |
|---|---|
| Accurax G5 servo drive encoder connector (for CN4) | R88A-CNK41L |
| Hypertac power cable connector IP67 | LPRA-06B-FRBN170 |
Dimensions
R88L-EA-AF-0303-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0303-0110-0005 | 110 | 312 | 2 | 6 | 3.1 | 9.5 |
| R88L-EA-AF-0303-0206-0005 | 206 | 408 | 3 | 8 | 3.1 | 10.9 |
| R88L-EA-AF-0303-0302-0005 | 302 | 504 | 4 | 10 | 3.1 | 12.4 |
| R88L-EA-AF-0303-0398-0005 | 398 | 600 | 5 | 12 | 3.1 | 13.8 |
| R88L-EA-AF-0303-0494-0005 | 494 | 696 | 6 | 14 | 3.1 | 15.2 |
| R88L-EA-AF-0303-0590-0005 | 590 | 792 | 7 | 16 | 3.1 | 16.7 |
| R88L-EA-AF-0303-0686-0005 | 686 | 888 | 8 | 18 | 3.1 | 18.1 |
| R88L-EA-AF-0303-0782-0005 | 782 | 984 | 9 | 20 | 3.1 | 19.6 |
| R88L-EA-AF-0303-0878-0005 | 878 | 1080 | 10 | 22 | 3.1 | 21.0 |
| R88L-EA-AF-0303-0974-0005 | 974 | 1176 | 11 | 24 | 3.1 | 22.5 |
| R88L-EA-AF-0303-1070-0005 | 1070 | 1272 | 12 | 26 | 3.1 | 23.9 |
| R88L-EA-AF-0303-1166-0005 | 1166 | 1368 | 13 | 28 | 3.1 | 25.4 |
| R88L-EA-AF-0303-1262-0005 | 1262 | 1464 | 14 | 30 | 3.1 | 26.8 |
| R88L-EA-AF-0303-1358-0005 | 1358 | 1560 | 15 | 32 | 3.1 | 28.2 |
| R88L-EA-AF-0303-1454-0005 | 1454 | 1656 | 16 | 34 | 3.1 | 29.7 |
| R88L-EA-AF-0303-1550-0005 | 1550 | 1752 | 17 | 36 | 3.1 | 31.1 |
| R88L-EA-AF-0303-1646-0005 | 1646 | 1848 | 18 | 38 | 3.1 | 32.6 |
| R88L-EA-AF-0303-1742-0005 | 1742 | 1944 | 19 | 40 | 3.1 | 34.0 |
| R88L-EA-AF-0303-1838-0005 | 1838 | 2040 | 20 | 42 | 3.1 | 35.5 |
| R88L-EA-AF-0303-1934-0005 | 1934 | 2136 | 21 | 44 | 3.1 | 36.9 |
| R88L-EA-AF-0303-2030-0005 | 2030 | 2232 | 22 | 46 | 3.1 | 38.3 |
| R88L-EA-AF-0303-2126-0005 | 2126 | 2328 | 23 | 48 | 3.1 | 39.8 |
R88L-EA-AF-0306-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0306-0158-0005 | 158 | 408 | 3 | 8 | 3.9 | 11.6 |
| R88L-EA-AF-0306-0254-0005 | 254 | 504 | 4 | 10 | 3.9 | 13.1 |
| R88L-EA-AF-0306-0350-0005 | 350 | 600 | 5 | 12 | 3.9 | 14.5 |
| R88L-EA-AF-0306-0446-0005 | 446 | 696 | 6 | 14 | 3.9 | 15.9 |
| R88L-EA-AF-0306-0542-0005 | 542 | 792 | 7 | 16 | 3.9 | 17.4 |
| R88L-EA-AF-0306-0638-0005 | 638 | 888 | 8 | 18 | 3.9 | 18.8 |
| R88L-EA-AF-0306-0734-0005 | 734 | 984 | 9 | 20 | 3.9 | 20.3 |
| R88L-EA-AF-0306-0830-0005 | 830 | 1080 | 10 | 22 | 3.9 | 21.7 |
| R88L-EA-AF-0306-0926-0005 | 926 | 1176 | 11 | 24 | 3.9 | 23.2 |
| R88L-EA-AF-0306-1022-0005 | 1022 | 1272 | 12 | 26 | 3.9 | 24.6 |
| R88L-EA-AF-0306-1118-0005 | 1118 | 1368 | 13 | 28 | 3.9 | 26.1 |
| R88L-EA-AF-0306-1214-0005 | 1214 | 1464 | 14 | 30 | 3.9 | 27.5 |
| R88L-EA-AF-0306-1310-0005 | 1310 | 1560 | 15 | 32 | 3.9 | 28.9 |
| R88L-EA-AF-0306-1406-0005 | 1406 | 1656 | 16 | 34 | 3.9 | 30.4 |
| R88L-EA-AF-0306-1502-0005 | 1502 | 1752 | 17 | 36 | 3.9 | 31.8 |
| R88L-EA-AF-0306-1598-0005 | 1598 | 1848 | 18 | 38 | 3.9 | 33.3 |
| R88L-EA-AF-0306-1694-0005 | 1694 | 1944 | 19 | 40 | 3.9 | 34.7 |
| R88L-EA-AF-0306-1790-0005 | 1790 | 2040 | 20 | 42 | 3.9 | 36.2 |
| R88L-EA-AF-0306-1886-0005 | 1886 | 2136 | 21 | 44 | 3.9 | 37.6 |
| R88L-EA-AF-0306-1982-0005 | 1982 | 2232 | 22 | 46 | 3.9 | 39.0 |
| R88L-EA-AF-0306-2078-0005 | 2078 | 2328 | 23 | 48 | 3.9 | 40.5 |
R88L-EA-AF-0606-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0606-0110-0005 | 110 | 360 | 3 | 8 | 5.4 | 14.1 |
| R88L-EA-AF-0606-0206-0005 | 206 | 456 | 4 | 10 | 5.4 | 15.9 |
| R88L-EA-AF-0606-0302-0005 | 302 | 552 | 5 | 12 | 5.4 | 17.6 |
| R88L-EA-AF-0606-0398-0005 | 398 | 648 | 6 | 14 | 5.4 | 19.3 |
| R88L-EA-AF-0606-0494-0005 | 494 | 744 | 7 | 16 | 5.4 | 21.0 |
| R88L-EA-AF-0606-0590-0005 | 590 | 840 | 8 | 18 | 5.4 | 22.8 |
| R88L-EA-AF-0606-0686-0005 | 686 | 936 | 9 | 20 | 5.4 | 24.5 |
| R88L-EA-AF-0606-0782-0005 | 782 | 1032 | 10 | 22 | 5.4 | 26.2 |
| R88L-EA-AF-0606-0878-0005 | 878 | 1128 | 11 | 24 | 5.4 | 28.0 |
| R88L-EA-AF-0606-0974-0005 | 974 | 1224 | 12 | 26 | 5.4 | 29.7 |
| R88L-EA-AF-0606-1070-0005 | 1070 | 1320 | 13 | 28 | 5.4 | 31.4 |
| R88L-EA-AF-0606-1166-0005 | 1166 | 1416 | 14 | 30 | 5.4 | 33.2 |
| R88L-EA-AF-0606-1262-0005 | 1262 | 1512 | 15 | 32 | 5.4 | 34.9 |
| R88L-EA-AF-0606-1358-0005 | 1358 | 1608 | 16 | 34 | 5.4 | 36.6 |
| R88L-EA-AF-0606-1454-0005 | 1454 | 1704 | 17 | 36 | 5.4 | 38.4 |
| R88L-EA-AF-0606-1550-0005 | 1550 | 1800 | 18 | 38 | 5.4 | 40.1 |
| R88L-EA-AF-0606-1646-0005 | 1646 | 1896 | 19 | 40 | 5.4 | 41.8 |
| R88L-EA-AF-0606-1742-0005 | 1742 | 1992 | 20 | 42 | 5.4 | 43.6 |
| R88L-EA-AF-0606-1838-0005 | 1838 | 2088 | 21 | 44 | 5.4 | 45.3 |
| R88L-EA-AF-0606-1934-0005 | 1934 | 2184 | 22 | 46 | 5.4 | 47.0 |
| R88L-EA-AF-0606-2030-0005 | 2030 | 2280 | 23 | 48 | 5.4 | 48.8 |
| R88L-EA-AF-0606-2126-0005 | 2126 | 2376 | 24 | 50 | 5.4 | 50.5 |
R88L-EA-AF-0609-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0609-0158-0005 | 158 | 456 | 4 | 10 | 6.7 | 17.2 |
| R88L-EA-AF-0609-0254-0005 | 254 | 552 | 5 | 12 | 6.7 | 18.9 |
| R88L-EA-AF-0609-0350-0005 | 350 | 648 | 6 | 14 | 6.7 | 20.6 |
| R88L-EA-AF-0609-0446-0005 | 446 | 744 | 7 | 16 | 6.7 | 22.3 |
| R88L-EA-AF-0609-0542-0005 | 542 | 840 | 8 | 18 | 6.7 | 24.1 |
| R88L-EA-AF-0609-0638-0005 | 638 | 936 | 9 | 20 | 6.7 | 25.8 |
| R88L-EA-AF-0609-0734-0005 | 734 | 1032 | 10 | 22 | 6.7 | 27.5 |
| R88L-EA-AF-0609-0830-0005 | 830 | 1128 | 11 | 24 | 6.7 | 29.3 |
| R88L-EA-AF-0609-0926-0005 | 926 | 1224 | 12 | 26 | 6.7 | 31.0 |
| R88L-EA-AF-0609-1022-0005 | 1022 | 1320 | 13 | 28 | 6.7 | 32.7 |
| R88L-EA-AF-0609-1118-0005 | 1118 | 1416 | 14 | 30 | 6.7 | 34.5 |
| R88L-EA-AF-0609-1214-0005 | 1214 | 1512 | 15 | 32 | 6.7 | 36.2 |
| R88L-EA-AF-0609-1310-0005 | 1310 | 1608 | 16 | 34 | 6.7 | 37.9 |
| R88L-EA-AF-0609-1406-0005 | 1406 | 1704 | 17 | 36 | 6.7 | 39.7 |
| R88L-EA-AF-0609-1502-0005 | 1502 | 1800 | 18 | 38 | 6.7 | 41.4 |
| R88L-EA-AF-0609-1598-0005 | 1598 | 1896 | 19 | 40 | 6.7 | 43.1 |
| R88L-EA-AF-0609-1694-0005 | 1694 | 1992 | 20 | 42 | 6.7 | 44.9 |
| R88L-EA-AF-0609-1790-0005 | 1790 | 2088 | 21 | 44 | 6.7 | 46.6 |
| R88L-EA-AF-0609-1886-0005 | 1886 | 2184 | 22 | 46 | 6.7 | 48.3 |
| R88L-EA-AF-0609-1982-0005 | 1982 | 2280 | 23 | 48 | 6.7 | 50.1 |
| R88L-EA-AF-0609-2078-0005 | 2078 | 2376 | 24 | 50 | 6.7 | 51.8 |
R88L-EA-AF-06012-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-0612-0110-0005 | 110 | 456 | 4 | 10 | 7.9 | 18.3 |
| R88L-EA-AF-0612-0206-0005 | 206 | 552 | 5 | 12 | 7.9 | 20.0 |
| R88L-EA-AF-0612-0302-0005 | 302 | 648 | 6 | 14 | 7.9 | 21.7 |
| R88L-EA-AF-0612-0398-0005 | 398 | 744 | 7 | 16 | 7.9 | 23.4 |
| R88L-EA-AF-0612-0494-0005 | 494 | 840 | 8 | 18 | 7.9 | 25.2 |
| R88L-EA-AF-0612-0590-0005 | 590 | 936 | 9 | 20 | 7.9 | 26.9 |
| R88L-EA-AF-0612-0686-0005 | 686 | 1032 | 10 | 22 | 7.9 | 28.6 |
| R88L-EA-AF-0612-0782-0005 | 782 | 1128 | 11 | 24 | 7.9 | 30.4 |
| R88L-EA-AF-0612-0878-0005 | 878 | 1224 | 12 | 26 | 7.9 | 32.1 |
| R88L-EA-AF-0612-0974-0005 | 974 | 1320 | 13 | 28 | 7.9 | 33.8 |
| R88L-EA-AF-0612-1070-0005 | 1070 | 1416 | 14 | 30 | 7.9 | 35.6 |
| R88L-EA-AF-0612-1166-0005 | 1166 | 1512 | 15 | 32 | 7.9 | 37.3 |
| R88L-EA-AF-0612-1262-0005 | 1262 | 1608 | 16 | 34 | 7.9 | 39.0 |
| R88L-EA-AF-0612-1358-0005 | 1358 | 1704 | 17 | 36 | 7.9 | 40.8 |
| R88L-EA-AF-0612-1454-0005 | 1454 | 1800 | 18 | 38 | 7.9 | 42.5 |
| R88L-EA-AF-0612-1550-0005 | 1550 | 1896 | 19 | 40 | 7.9 | 44.2 |
| R88L-EA-AF-0612-1646-0005 | 1646 | 1992 | 20 | 42 | 7.9 | 46.0 |
| R88L-EA-AF-0612-1742-0005 | 1742 | 2088 | 21 | 44 | 7.9 | 47.7 |
| R88L-EA-AF-0612-1838-0005 | 1838 | 2184 | 22 | 46 | 7.9 | 49.4 |
| R88L-EA-AF-0612-1934-0005 | 1934 | 2280 | 23 | 48 | 7.9 | 50.2 |
| R88L-EA-AF-0612-2030-0005 | 2030 | 2376 | 24 | 50 | 7.9 | 52.9 |
R88L-EA-AF-1112-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-1112-0110-0005 | 110 | 456 | 4 | 10 | 13.7 | 31.9 |
| R88L-EA-AF-1112-0206-0005 | 206 | 552 | 5 | 12 | 13.7 | 35.2 |
| R88L-EA-AF-1112-0302-0005 | 302 | 648 | 6 | 14 | 13.7 | 38.5 |
| R88L-EA-AF-1112-0398-0005 | 398 | 744 | 7 | 16 | 13.7 | 41.7 |
| R88L-EA-AF-1112-0494-0005 | 494 | 840 | 8 | 18 | 13.7 | 45.0 |
| R88L-EA-AF-1112-0590-0005 | 590 | 936 | 9 | 20 | 13.7 | 48.3 |
| R88L-EA-AF-1112-0686-0005 | 686 | 1032 | 10 | 22 | 13.7 | 51.5 |
| R88L-EA-AF-1112-0782-0005 | 782 | 1128 | 11 | 24 | 13.7 | 54.8 |
| R88L-EA-AF-1112-0878-0005 | 878 | 1224 | 12 | 26 | 13.7 | 58.1 |
| R88L-EA-AF-1112-0974-0005 | 974 | 1320 | 13 | 28 | 13.7 | 61.3 |
| R88L-EA-AF-1112-1070-0005 | 1070 | 1416 | 14 | 30 | 13.7 | 64.6 |
| R88L-EA-AF-1112-1166-0005 | 1166 | 1512 | 15 | 32 | 13.7 | 67.9 |
| R88L-EA-AF-1112-1262-0005 | 1262 | 1608 | 16 | 34 | 13.7 | 71.1 |
| R88L-EA-AF-1112-1358-0005 | 1358 | 1704 | 17 | 36 | 13.7 | 74.4 |
| R88L-EA-AF-1112-1454-0005 | 1454 | 1800 | 18 | 38 | 13.7 | 77.7 |
| R88L-EA-AF-1112-1550-0005 | 1550 | 1896 | 19 | 40 | 13.7 | 80.9 |
| R88L-EA-AF-1112-1646-0005 | 1646 | 1992 | 20 | 42 | 13.7 | 84.2 |
| R88L-EA-AF-1112-1742-0005 | 1742 | 2088 | 21 | 44 | 13.7 | 87.5 |
| R88L-EA-AF-1112-1838-0005 | 1838 | 2184 | 22 | 46 | 13.7 | 90.8 |
| R88L-EA-AF-1112-1934-0005 | 1934 | 2280 | 23 | 48 | 13.7 | 94.0 |
| R88L-EA-AF-1112-2030-0005 | 2030 | 2376 | 24 | 50 | 13.7 | 97.3 |
| R88L-EA-AF-1112-2126-0005 | 2126 | 2472 | 25 | 52 | 13.7 | 100.6 |
R88L-EA-AF-1115-_ (230/400 VAC)
| Linear axis model | Effective stroke (mm) | L (mm) | n | N° of mounting holes | Weight of moving table including motor coil (kg) | Weight of the complete axis (kg) |
|---|---|---|---|---|---|---|
| R88L-EA-AF-1115-0158-0005 | 158 | 552 | 5 | 12 | 15.9 | 37.4 |
| R88L-EA-AF-1115-0254-0005 | 254 | 648 | 6 | 14 | 15.9 | 40.6 |
| R88L-EA-AF-1115-0350-0005 | 350 | 744 | 7 | 16 | 15.9 | 43.9 |
| R88L-EA-AF-1115-0446-0005 | 446 | 840 | 8 | 18 | 15.9 | 47.2 |
| R88L-EA-AF-1115-0542-0005 | 542 | 936 | 9 | 20 | 15.9 | 50.4 |
| R88L-EA-AF-1115-0638-0005 | 638 | 1032 | 10 | 22 | 15.9 | 53.7 |
| R88L-EA-AF-1115-0734-0005 | 734 | 1128 | 11 | 24 | 15.9 | 57.0 |
| R88L-EA-AF-1115-0830-0005 | 830 | 1224 | 12 | 26 | 15.9 | 60.2 |
| R88L-EA-AF-1115-0926-0005 | 926 | 1320 | 13 | 28 | 15.9 | 63.5 |
| R88L-EA-AF-1115-1022-0005 | 1022 | 1416 | 14 | 30 | 15.9 | 66.8 |
| R88L-EA-AF-1115-1118-0005 | 1118 | 1512 | 15 | 32 | 15.9 | 70.0 |
| R88L-EA-AF-1115-1214-0005 | 1214 | 1608 | 16 | 34 | 15.9 | 73.3 |
| R88L-EA-AF-1115-1310-0005 | 1310 | 1704 | 17 | 36 | 15.9 | 76.6 |
| R88L-EA-AF-1115-1406-0005 | 1406 | 1800 | 18 | 38 | 15.9 | 79.8 |
| R88L-EA-AF-1115-1502-0005 | 1502 | 1896 | 19 | 40 | 15.9 | 83.1 |
| R88L-EA-AF-1115-1598-0005 | 1598 | 1992 | 20 | 42 | 15.9 | 86.4 |
| R88L-EA-AF-1115-1694-0005 | 1694 | 2088 | 21 | 44 | 15.9 | 89.6 |
| R88L-EA-AF-1115-1790-0005 | 1790 | 2184 | 22 | 46 | 15.9 | 92.9 |
| R88L-EA-AF-1115-1886-0005 | 1886 | 2280 | 23 | 48 | 15.9 | 96.2 |
| R88L-EA-AF-1115-1982-0005 | 1982 | 2376 | 24 | 50 | 15.9 | 99.4 |
| R88L-EA-AF-1115-2078-0005 | 2078 | 2472 | 25 | 52 | 15.9 | 102.7 |
| R88L-EA-AF-1115-2174-0005 | 2174 | 2568 | 26 | 54 | 15.9 | 106.0 |
