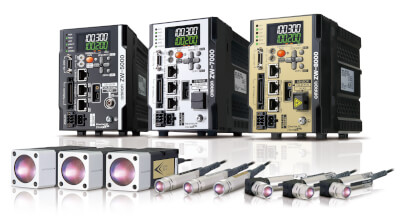

ZW Series

Ordering information

ZW-8000

Sensor Head

Type	Measuring range	Spot diameter	Static resolution	Cable length	Order code
Square-shaped straight	10±0.5 mm	4 µm dia.	0.25 µm	2 m	ZW-S8010 2M
	10±0.5 mm	4 µm dia.		0.3 m	ZW-S8010 0.3M
	20±1 mm	7 µm dia.		2 m	ZW-S8020 2M
	20±1 mm	7 µm dia.		0.3 m	ZW-S8020 0.3M
	30±2 mm	10 µm dia.		2 m	ZW-S8030 2M
	30±2 mm	10 µm dia.		0.3 m	ZW-S8030 0.3M
Pen-shaped straight	7±0.3 mm	7 µm dia.		2 m	ZW-SP8007 2M
	7±0.3 mm	7 µm dia.		0.3 m	ZW-SP8007 0.3M
	10±0.7 mm	10 µm dia.		2 m	ZW-SP8010 2M
	10±0.7 mm	10 µm dia.		0.3 m	ZW-SP8010 0.3M
Pen-shaped right angle	7±0.3 mm	8 µm dia.		2 m	ZW-SPR8007 2M
	7±0.3 mm	8 µm dia.		0.3 m	ZW-SPR8007 0.3M
	10±0.7 mm	11 µm dia.		2 m	ZW-SPR8010 2M
	10±0.7 mm	11 µm dia.		0.3 m	ZW-SPR8010 0.3M

Sensor Controller with EtherCAT

Appearance	Power supply	Output type	Order code
	24 VDC	NPN/PNP	ZW-8000T

Cable

Item	Cable length	Order code
Extension Fiber Cable (from Sensor Head to Sensor Controller), (Fiber Adapter ZW-XFCS is included) Note: Extension Fiber Cable ZW-XF80R can be used with the firmware version 3.000 or later. If you have an old version Sensor Controller, register as a Sysmac member and download the latest firmware and tools to update your Sensor Controller. Refer to the Sysmac member registration sheet that is enclosed with the Sensor Controller for details on member registration and firmware download.	2 m	ZW-XF8002R
	5 m	ZW-XF8005R
	10 m	ZW-XF8010R
	20 m	ZW-XF8020R
	30 m	ZW-XF8030R
Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable)	–	ZW-XFCS

ZW-7000

Sensor Head

Type	Measuring range	Spot diameter	Static resolution	Cable length	Order code
Square-shaped straight	10±0.5 mm	50 µm dia.	0.25 µm	2 m	ZW-S7010 2M
	10±0.5 mm	50 µm dia.		0.3 m	ZW-S7010 0.3M
	20±1 mm	70 µm dia.		2 m	ZW-S7020 2M
	20±1 mm	70 µm dia.		0.3 m	ZW-S7020 0.3M
	30±2 mm	100 µm dia.		2 m	ZW-S7030 2M
	30±2 mm	100 µm dia.		0.3 m	ZW-S7030 0.3M
	40±3 mm	120 µm dia.		2m	ZW-S7040 2M
	40±3 mm	120 µm dia.		0.3m	ZW-S7040 0.3M
Pen-shaped straight	7±0.3 mm	130 µm dia.		2 m	ZW-SP7007 2M
	7±0.3 mm	130 µm dia.		0.3 m	ZW-SP7007 0.3M
	10±0.7 mm	170 µm dia.		2 m	ZW-SP7010 2M
	10±0.7 mm	170 µm dia.		0.3 m	ZW-SP7010 0.3M
Pen-shaped right angle	7±0.3 mm	150 µm dia.		2 m	ZW-SPR7007 2M
	7±0.3 mm	150 µm dia.		0.3 m	ZW-SPR7007 0.3M
	10±0.7 mm	190 µm dia.		2 m	ZW-SPR7010 2M
	10±0.7 mm	190 µm dia.		0.3 m	ZW-SPR7010 0.3M

Sensor Controller with EtherCAT

Appearance	Power supply	Output type	Order code
	24 VDC	NPN/PNP	ZW-7000T

Cable

Item	Cable length	Order code
Extension Fiber Cable (from Sensor Head to Sensor Controller), (Fiber Adapter ZW-XFCM is included) Note: Cables of 10, 20, and 30 m can be used with the firmware version 2.100 or later. If you have an old version Sensor Controller, register as a Sysmac member and download the latest firmware and tools to update your Sensor Controller. Refer to the Sysmac member registration sheet that is enclosed with the Sensor Controller for details on member registration and firmware download.	2 m	ZW-XF7002R
	5 m	ZW-XF7005R
	10 m	ZW-XF7010R
	20 m	ZW-XF7020R
	30 m	ZW-XF7030R
Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable)	–	ZW-XFCM

ZW-5000

Sensor Head

Type	Measuring range	Spot diameter	Static resolution	Cable length	Order code
Square-shaped straight	10±0.5 mm	9 µm dia.	0.25 µm	2 m	ZW-S5010 2M
	10±0.5 mm	9 µm dia.		0.3 m	ZW-S5010 0.3M
	20±1 mm	13 µm dia.		2 m	ZW-S5020 2M
	20±1 mm	13 µm dia.		0.3 m	ZW-S5020 0.3M
	30±2 mm	18 µm dia.		2 m	ZW-S5030 2M
	30±2 mm	18 µm dia.		0.3 m	ZW-S5030 0.3M
Pen-shaped straight	7±0.3 mm	13 µm dia.		2 m	ZW-SP5007 2M
	7±0.3 mm	13 µm dia.		0.3 m	ZW-SP5007 0.3M
	10±0.7 mm	18 µm dia.		2 m	ZW-SP5010 2M
	10±0.7 mm	18 µm dia.		0.3 m	ZW-SP5010 0.3M
Pen-shaped right angle	7±0.3 mm	15 µm dia.		2 m	ZW-SPR5007 2M
	7±0.3 mm	15 µm dia.		0.3 m	ZW-SPR5007 0.3M
	10±0.7 mm	20 µm dia.		2 m	ZW-SPR5010 2M
	10±0.7 mm	20 µm dia.		0.3 m	ZW-SPR5010 0.3M

Sensor Controller with EtherCAT

Appearance	Power supply	Output type	Order code
	24 VDC	NPN/PNP	ZW-5000T

Cable

Item	Cable length	Order code
Extension Fiber Cable (from Sensor Head to Sensor Controller), (Fiber Adapter ZW-XFC2 is included) Note: Extension Fiber Cable ZW-XF50R can be used with the firmware version 2.100 or later. If you have an old version Sensor Controller, register as a Sysmac member and download the latest firmware and tools to update your Sensor Controller. Refer to the Sysmac member registration sheet that is enclosed with the Sensor Controller for details on member registration and firmware download.	2 m	ZW-XF5002R
	5 m	ZW-XF5005R
	10 m	ZW-XF5010R
	20 m	ZW-XF5020R
	30 m	ZW-XF5030R
Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable)	–	ZW-XFC2

Common cables

Item	Cable length	Order code
Parallel cable for ZW-8000T/7000T/5000T 32-pole (included with Sensor Controller ZW-8000T/7000T/5000T)	2 m	ZW-XCP2E
RS-232C Cable for personal computer	2 m	ZW-XRS2
RS-232C Cable for PLC/programmable terminal	2 m	ZW-XPT2

Appearance

Item

Cable length

Order code

Parallel cable for ZW-8000T/7000T/5000T

32-pole
(included with Sensor Controller ZW-8000T/7000T/5000T)

2 m

ZW-XCP2E

RS-232C Cable for personal computer

2 m

ZW-XRS2

RS-232C Cable for PLC/programmable terminal

2 m

ZW-XPT2

Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair)
cable of category 5 or higher with double shielding (braiding and
aluminum foil tape) for EtherCAT.

Cable with Connectors

Item	Recommended manufacturer	Cable length(m)	Order code
Standard type Cable with Connectors on Both Ends (RJ45/RJ45)Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH Cable color: Yellow	OMRON	0.3	XS6W-6LSZH8SS30CM-Y
		0.5	XS6W-6LSZH8SS50CM-Y
		1	XS6W-6LSZH8SS100CM-Y
		2	XS6W-6LSZH8SS200CM-Y
		3	XS6W-6LSZH8SS300CM-Y
		5	XS6W-6LSZH8SS500CM-Y
Rugged type Cable with Connectors on Both Ends (RJ45/RJ45)Wire Gauge and Number of Pairs: AWG22, 2-pair Cable	OMRON	0.3	XS5W-T421-AMD-K
		0.5	XS5W-T421-BMD-K
		1	XS5W-T421-CMD-K
		2	XS5W-T421-DMD-K
		5	XS5W-T421-GMD-K
		10	XS5W-T421-JMD-K
Rugged type Cable with Connectors on Both Ends (M12 Straight/RJ45)Wire Gauge and Number of Pairs: AWG22, 2-pair Cable	OMRON	0.3	XS5W-T421-AMC-K
		0.5	XS5W-T421-BMC-K
		1	XS5W-T421-CMC-K
		2	XS5W-T421-DMC-K
		5	XS5W-T421-GMC-K
		10	XS5W-T421-JMC-K
Rugged type Cable with Connectors on Both Ends (M12 Right-angle/RJ45)Wire Gauge and Number of Pairs: AWG22, 2-pair Cable	OMRON	0.3	XS5W-T422-AMC-K
		0.5	XS5W-T422-BMC-K
		1	XS5W-T422-CMC-K
		2	XS5W-T422-DMC-K
		5	XS5W-T422-GMC-K
		10	XS5W-T422-JMC-K

Note:

For details, refer to Cat.No.G019.

Cables/Connectors

Wire Gauge and Number of Pairs: AWG24, 4-pair Cable

Item	Appearance	Recommended manufacturer	Order code
Cables	–	Hitachi Metals, Ltd.	NETSTAR-C5E SAB 0.5 × 4P CP
	–	Kuramo Electric Co.	KETH-SB
	–	SWCC Showa Cable Systems Co.	FAE-5004
RJ45 Connectors	–	Panduit Corporation	MPS588-C

Wire Gauge and Number of Pairs: AWG22, 2-pair Cable

Item	Appearance	Recommended manufacturer	Order code
Cables	–	Kuramo Electric Co.	KETH-PSB-OMR
Cables	–	JMACS Japan Co.,Ltd.	PNET/B
RJ45 Assembly Connector		OMRON	XS6G-T421-1

Note:

Connect both ends of cable shielded wires
to the connector hoods.

Industrial switching hubs for Ethernet

Number of ports	Failure detection	Current consumption	Order code
3	None	0.22 A	W4S1-03B
5	None	0.22 A	W4S1-05B
5	Supported	0.22 A	W4S1-05C

Note:

Industrial switching hubs cannot be used
for EtherCAT.

EtherCAT junction slaves

Appearance	Number of ports	Power supply voltage	Current consumption	Order code
	3	20.4 to 28.8 VDC (24 VDC -15 to 20%)	0.08A	GX-JC03
	6	20.4 to 28.8 VDC (24 VDC -15 to 20%)	0.17A	GX-JC06

Note:

Please do not connect
EtherCAT junction slave with OMRON position control unit, Model
CJ1W-NC81/82.
EtherCAT junction slaves cannot be used for EtherNet/IP^TM and
Ethernet.

Automation Software Sysmac Studio

Please purchase a DVD and required number
of licenses the first time you purchase the Sysmac Studio. DVDs
and licenses are available individually.

Each model of licenses
does not include DVD.

Item	Specifications	Number of licenses	Media	Standards	Order code
Sysmac Studio Standard Edition Ver.1	The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) This software provides functions of the Measurement Sensor Edition. Refer to your OMRON website for details.	– (Media only)	DVD	–	SYSMAC-SE200D
Sysmac Studio Standard Edition Ver.1		1 license	–	–	SYSMAC-SE201L
Sysmac Studio Measurement Sensor Edition Ver.1.	Sysmac Studio Measurement Sensor Edition is a limited license that provides selected functions required for ZW-series Displacement Sensor settings. Because this product is a license only, you need the Sysmac Standard Edition DVD media to install it.	1 license	–	–	SYSMAC-ME001L
Sysmac Studio Measurement Sensor Edition Ver.1.		3 license	–	–	SYSMAC-ME003L

Fiber Cleaner

Item	Recommended manufacturer	Applicable Model			Contacts	Order code
Item	Recommended manufacturer	ZW-8000	ZW-7000	ZW-5000	Contacts	Order code
Fiber Connector Cleaner	OMRON	Yes	Yes	Yes	OMRON	ZW-XCL
NEOCLEAN-M	NTT Advanced Technology Corporation	No	Yes	No		ATC-NE-M1
OPTIPOP R1	NTT Advanced Technology Corporation	Yes (Sensor Head only)	No	Yes (Sensor Head only)		ATC-RE-01
