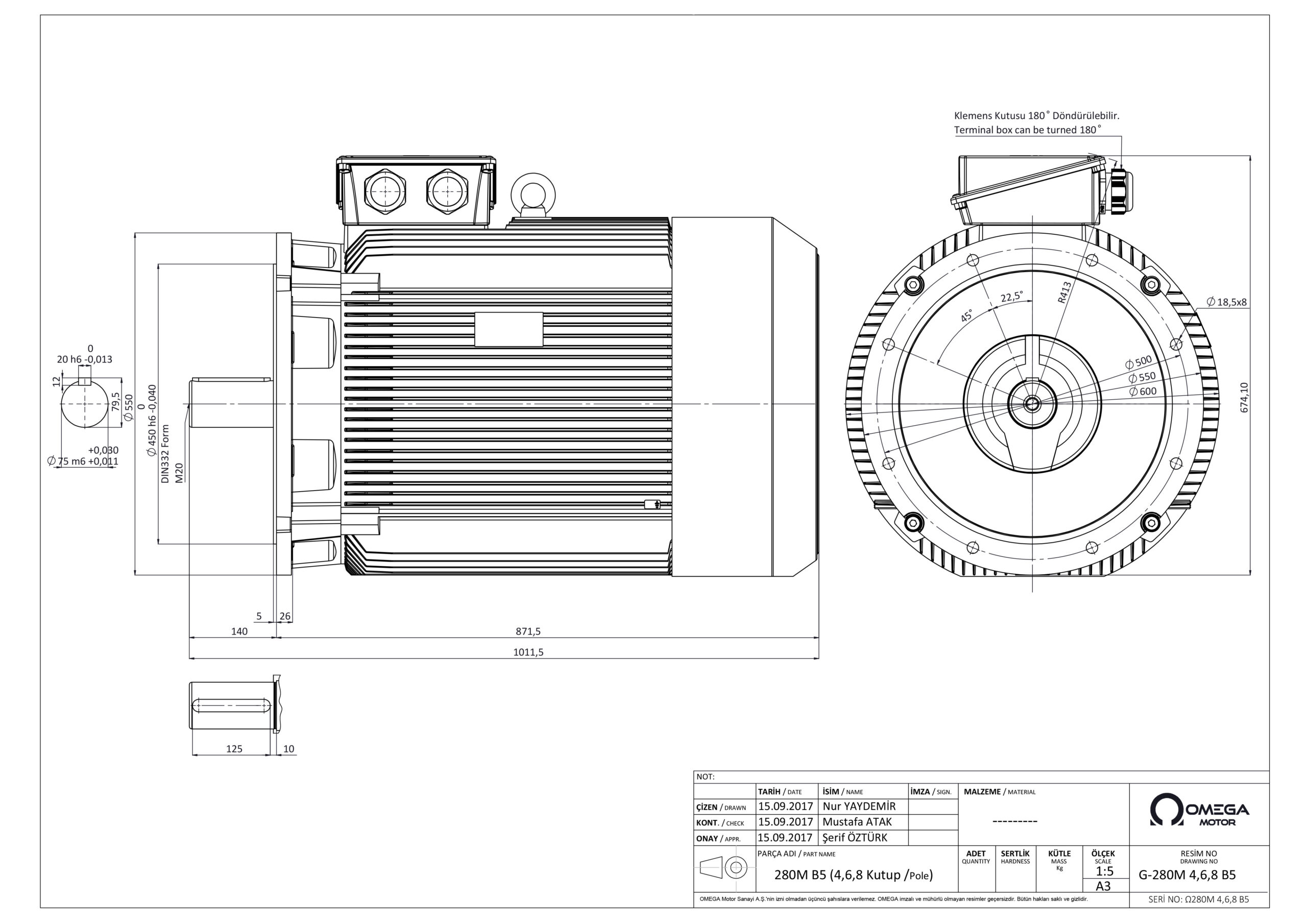

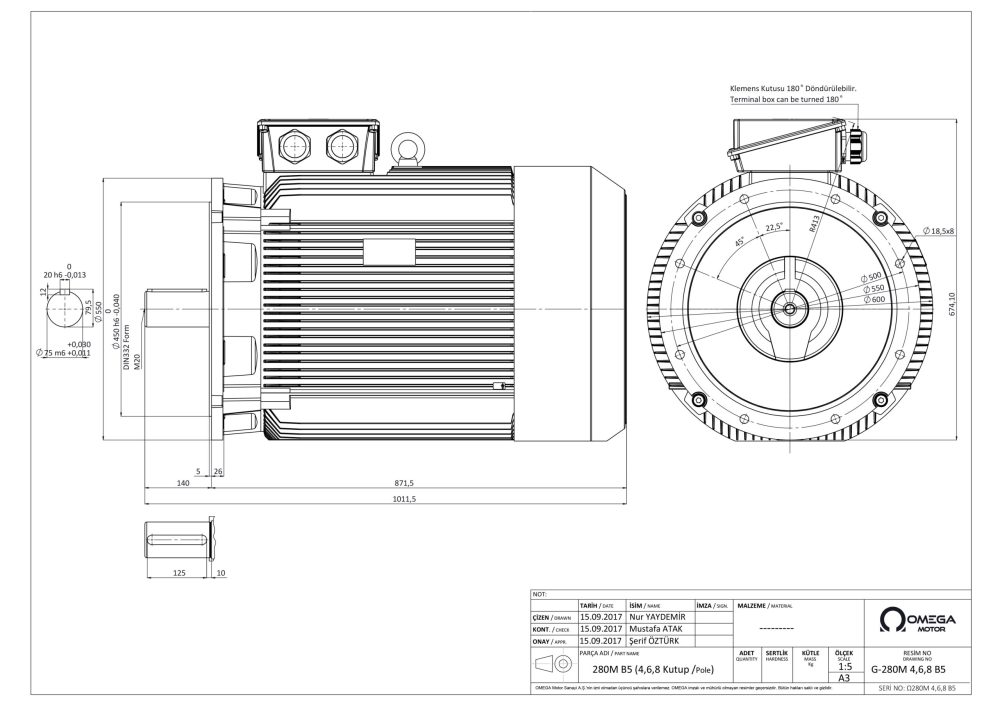

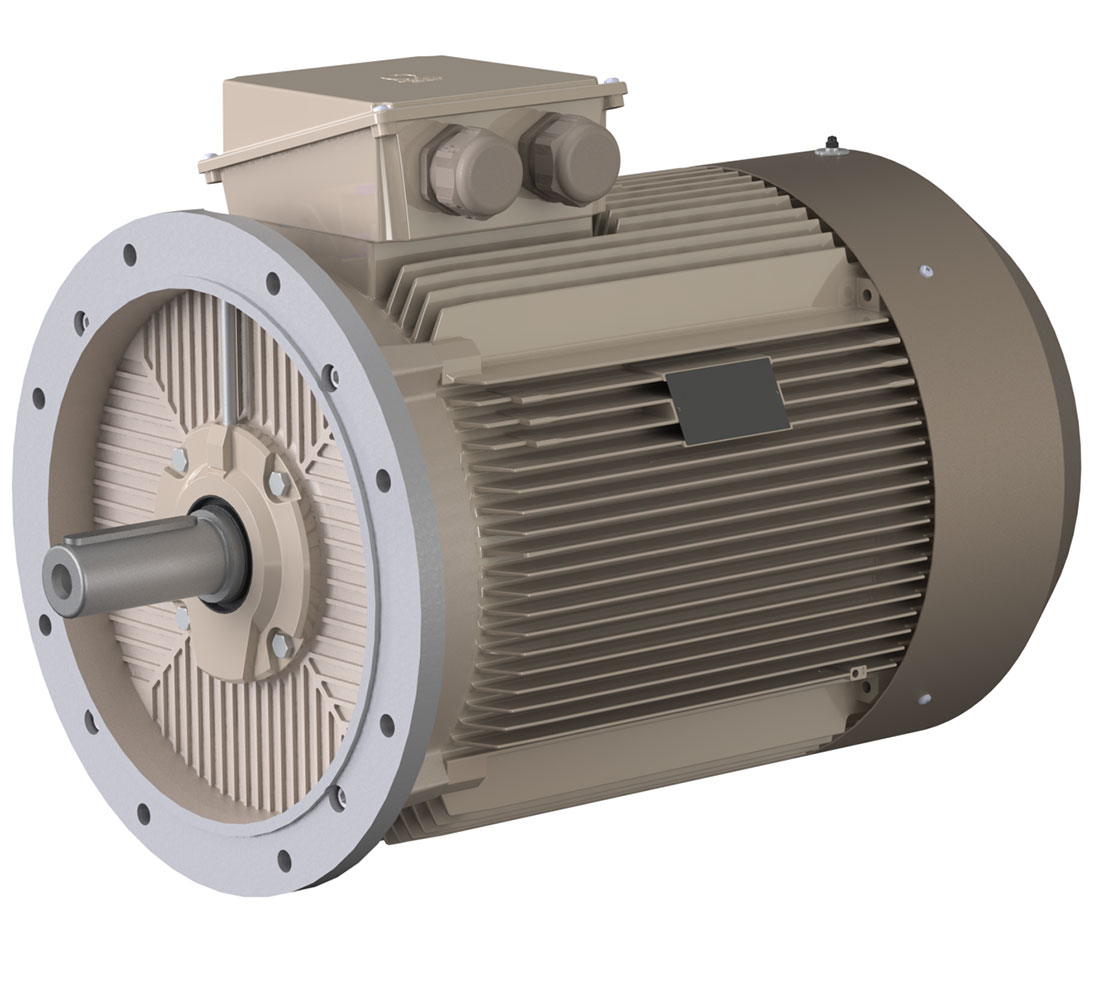

IE3 75kW 1000rpm, GG20 280MK6, 3Ph 50Hz 400V/690V D/Y, IMB5
| Product Code | 3M0SG3E-28MK60BT0 | ||
|---|---|---|---|
| Motor Type | 3MGS 280MK6 | ||
| Mounting Method | IMB5 | ||
| Terminal Box Location | Üstte | ||
| Efficiency Class | IE3 | ||
| Output Power | 75,00 kW | ||
| Synchronous Speed | 1000 rpm | ||
| Body Material | GG20 | ||
| Body Size | 280MK6 | ||
| Phase | 3 | ||
| Frequency | 50 | ||
| Voltage | 400 / 690 V (D/Y) | ||
| Number of Poles | 6 | ||
| Current | 139,56 / 80,90 A ( / ) | ||
| Torque | 723,00 Nm | ||
| Moment of Inertia | 2,538 kg.m² | ||
| Load | 4/4 100% Load | 3/4 75% Load | 2/4 50% Load |
| Efficiency | 94,6 % | 94,8 % | 94,5 % |
| Power Factor | 0,82 | 0,78 | 0,67 |
| Starting Current | 7,2 | ||
| Starting Moment | 2,5 | ||
| Breakdown Torque | 3,0 | ||
| Protection Degree | IP 55 | ||
| Insulation Class | F F | ||
| Temperature Increase Class | B B | ||
| Ambient Temperature | -20°C +40°C | ||
| Altitude | 1000 | ||
| Cooling Method | IC 411 | ||
| Noise of Level | 71 dB | ||
| Vibration Class | Derece A | ||
| Duty Type | S1 | ||
| Service Factor | 1,00 | ||
| Motor Rotation Direction | |||
| Approximate Rotor Weight | 260,0 kg | ||
| Approximate Motor Weight | 653,0 kg | ||
| Bearings | Ön (6204 ZZ/CM) | Arka (6204 ZZ/CM) | |
| Relubrication Period | 14500h | 33g | |
| Grease Volume | Shell Alvania Rt3 | 33g | |
| Grease Type | Shell Alvania Rt3 |
