CS1D

The dual-redundant PLC
system for never-fail control

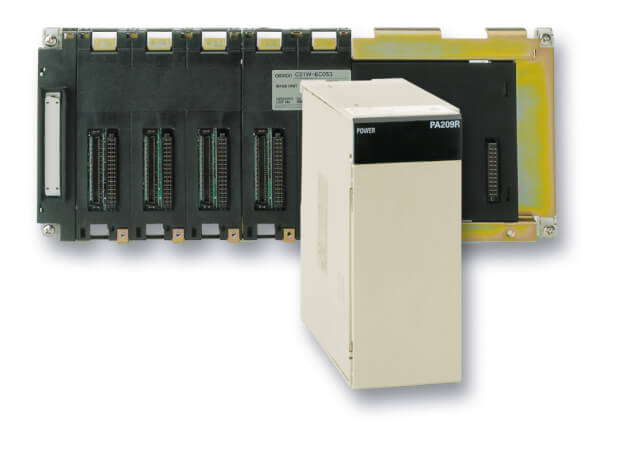

CS1D adds a number of dual-redundancy options to the well-proven CS1 architecture to ensure around-the-clock operation without minimal downtime. Duplex CPUs, with or without loop control functions, are continuously cross-checked for errors, without the need for special programs to be written by the user. An even simpler way to increase system availability is to use dual power supply units. Hot swapping of CPUs, power supplies and I/O units allow system maintenance with little or no process interruption.

Choose the level of redundancy needed; CPU, power supply, communication
No special programming or software tools required
Hot-swapping of I/O units

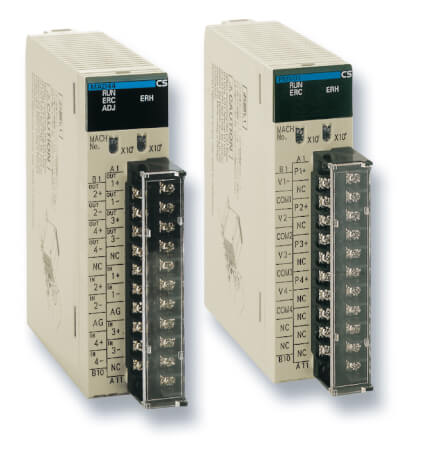

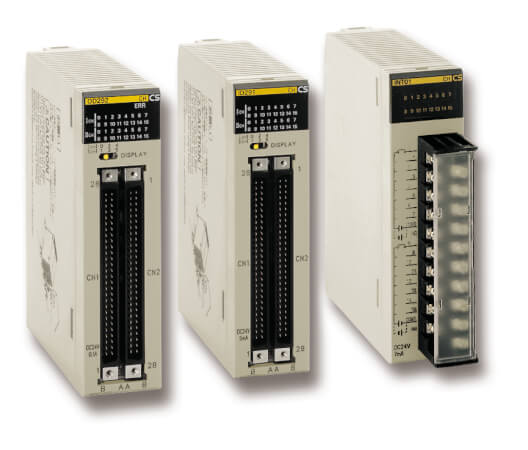

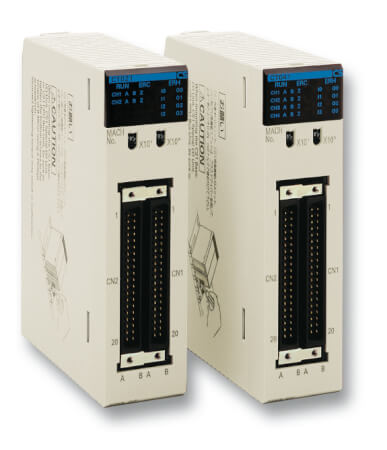

All standard CS1 I/O units can be mounted
Ideal for control of power generators, water supply utilities, 24/7 production.

Ordering information

Max. Digital I/O points	Program capacity	Data memory capacity	Logic execution speed	Max. I/O units	Additional functions	Order code
5120	250K steps	448K words	20 ns	80	–	CS1H-CPU67H
				71	Supports duplex power supply and I/O hot-swapping	CS1D-CPU67S
				68	CPU for full dual-redundancy	CS1D-CPU67H
				68	CPU for full dual-redundancy, with loop control board	CS1D-CPU67P
	120K steps	256K words		80	–	CS1H-CPU66H
	60K steps	128K words		80	–	CS1H-CPU65H
				71	Supports duplex power supply and I/O hot-swapping	CS1D-CPU65S
				68	CPU for full dual-redundancy	CS1D-CPU65H
				68	CPU for full dual-redundancy, with loop control board	CS1D-CPU65P
	30K steps	64K words		80	–	CS1H-CPU64H
	20K steps				–	CS1H-CPU63H
	60K steps		40 ns		–	CS1G-CPU45H
1280	30K steps			40	–	CS1G-CPU44H
1280	30K steps			35	Supports duplex power supply and I/O hot-swapping	CS1D-CPU44S
960	20K steps			30	–	CS1G-CPU43H
	10K steps			30	–	CS1G-CPU42H
	10K steps			26	Supports duplex power supply and I/O hot-swapping	CS1D-CPU42S

Accessories

Description	Remarks	Order code
High-speed data collection and storage unit, with CF card slot and Ethernet port	CPU bus unit	CS1W-SPU01-V2
High-speed data collection and storage unit, with CF card slot and 2 Ethernet ports	CPU bus unit	CS1W-SPU02-V2
Duplex unit, required for CS1D-CPU6_H systems	–	CS1D-DPL01
Serial communication option board, 2 x RS-232C	–	CS1W-SCB21-V1
Serial communication option board, 1 x RS-232C + 1 x RS422/RS-485	–	CS1W-SCB41-V1
Loop control option board	50 control blocks max.	CS1W-LCB01
Loop control option board	300 control blocks max.	CS1W-LCB05
Replacement battery set, for all CS1 CPUs	–	CS1W-BAT01
Compact Flash memory card, 128 MB, for all models (not required for operation)	Industrial grade	HMC-EF183
Compact Flash memory card, 256 MB, for all models (not required for operation)	Industrial grade	HMC-EF283
Compact Flash memory card, 512 MB, for all models (not required for operation)	Industrial grade	HMC-EF583
Compact Flash PC-Card adapter	–	HMC-AP001

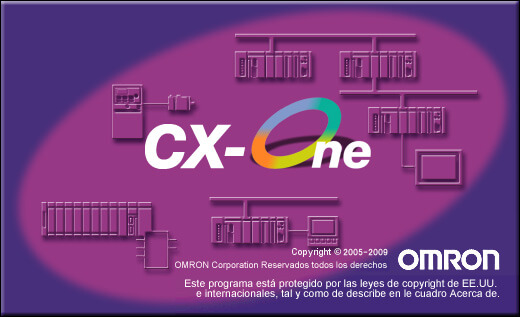

CX-One, integrated software for programming and configuration of all Omron control system components	–	CX-ONE-AL__C-E
Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port	length: 2.0 m	CS1W-CN226
Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port	length: 6.0 m	CS1W-CN626
USB to serial conversion cable	–	CS1W-CIF31
