V780

UHF RFID System

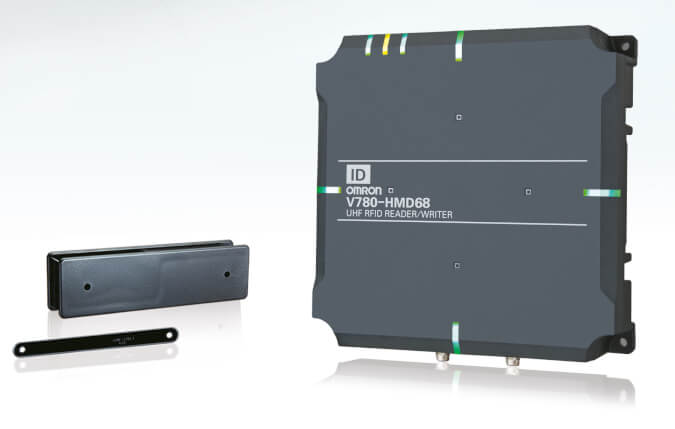

3 in 1 UHF RFID System: Antenna, Amplifier & Controller

  • Conforms to ISO/IEC 18000-63: 2013
  • Long range and stable communications
  • Reader/writer with integrated antenna
  • Communications status visualized by LED indicators
  • Host communications: Ethernet (Modbus/TCP base)
  • Simple and easy to use


Ordering information

Reader/Writer

Appearance Size (mm) Network

Applicable countries

Order code
250 × 250 × 70 Modbus/TCP base
(TCP/IP)
Japan V780-HMD68-ETN-JP
Korea V780-HMD68-ETN-KR
China V780-HMD68-ETN-CN
Taiwan V780-HMD68-ETN-TW
India V780-HMD68-ETN-IN
Indonesia V780-HMD68-ETN-ID
Malaysia V780-HMD68-ETN-MY
Singapore and Thailand V780-HMD68-ETN-SG
Under RE direct. V780-HMD68-ETN-EU
Russia V780-HMD68-ETN-RU
United States and Canada V780-HMD68-ETN-US
Mexico V780-HMD68-ETN-MX
EtherNet/IP Japan V780-HMD68-EIP-JP
Korea V780-HMD68-EIP-KR
China V780-HMD68-EIP-CN
Taiwan V780-HMD68-EIP-TW
India V780-HMD68-EIP-IN
Indonesia V780-HMD68-EIP-ID
Malaysia V780-HMD68-EIP-MY
Under RE direct. V780-HMD68-EIP-EU
Russia V780-HMD68-EIP-RU
United States and Canada V780-HMD68-EIP-US
Mexico V780-HMD68-EIP-MX

RF Tag

Appearance Memory capacity Size (mm) Order code
1 KB 150 × 14 × 6

V780-A-JIME-Z3BLI-10

RF Tag Attachment

Appearance Material Size (mm) Order code
Polycarbonate plastic 180 × 50 × 30

V780-A-TA-133-10

Note:

  1. Use the RF Tag Attachment when mounting on metal surface. Refer to the User’s Manual for how to mount.
  2. Toppan Forms Co., Ltd. manufactures RF Tags and Attachments. For more information, visit the following website:
    http://www.toppan-f.co.jp/english/

Cables

Recommended Ethernet Cables (Connection between Host Device and Reader/Writer)

Use STP (shielded twisted-pair) cable of category 5 or higher.

Appearance Specifications

Cable length (m)

Order code
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable with Plug on One End and Socket on Other End
(M12 Straight/RJ45)
0.5 XS5W-T421-BME-K
1 XS5W-T421-CME-K
2 XS5W-T421-DME-K
5 XS5W-T421-GME-K
10 XS5W-T421-JME-K

Note:

For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).

Other cable lengths, robot cables, and extension cables are available. Contact your Omron representative for details.

Recommended Power Cables (Connection between Power Supply and Reader/Writer) XS5F-D42⬜⬜80-F

Specifications Cable length (m) Cable outer diameter (mm) Order code
Straight Connectors Angled Connectors
Fire-retardant,
Robot Cable
1 6 XS5F-D421-C80-F XS5F-D422-C80-F
2 XS5F-D421-D80-F XS5F-D422-D80-F
3 XS5F-D421-E80-F XS5F-D422-E80-F
5 XS5F-D421-G80-F XS5F-D422-G80-F
10 XS5F-D421-J80-F XS5F-D422-J80-F

Note:

For details, refer to the XS5 datasheet (http://www.ia.omron.com/).

Other cable lengths and extension cables are available. Contact your Omron representative for details.

Recommended Industrial Switching Hubs

Appearance Specifications Order code
Functions No. of ports Failure detection

Quality of Service (QoS):
EtherNet/IP control data priorityFailure detection:
Broadcast storm and LSI error detection

10/100BASE-TX, Auto-Negotiation

3 No W4S1-03B
5 No W4S1-05B
5 Yes W4S1-05C

Recommended for you

NX Safety Hybrid

NX Safety distributed

NE1A-SCPU_

NX-Safety stand alone

Videos

Omron UHF RFID System – V780 Series

UHF Long Range RFID Reader/Writer. This highly functional integrated (controller, antenna) RFID system provides optimum communication between the reader and tags. Industry-leading features such as “focus” mode and “automatic power tuning” maximize read rates and minimize misread. Setup and diagnostic tools such as reception level monitoring, real-time status indication, noise and channel monitor and real-time tag read status indication make the V780 easy to set up and easy to diagnose any RF environmental issues. More information USA CANADA MEXICO
