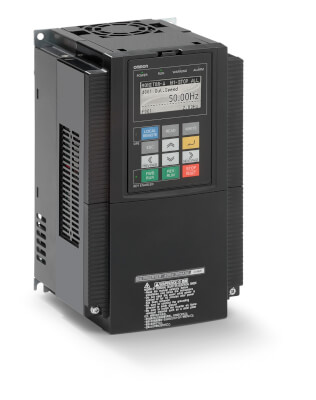

RX

Customised to your machine

Omron realises that you need quality and reliability, plus the ability to easily and quickly customise your inverter to the application in hand. And with the RX, you have the perfect tool for the job. Naturally it combines the same high level of quality and performance for which Omron is renowned. It also has abundant application functionality on board and you can customise it yourself to match your precise requirements.

Ratings up to 132 kW
Full torque at 0 Hz in closed loop
Sensor-less and vector closed-loop control
Built-in EMC filter, logic programming and application functionality
Fieldbus communications: Modbus, DeviceNet, PROFIBUS, MECHATROLINK-II, EtherCAT and CompoNet
Regenerative solutions as option
CE, cULus, RoHS

Ordering information

3G3RX

Specifications					Order code	Specifications					Order code
Voltage class	Constant torque		Variable torque		Standard	Voltage class	Constant torque		Variable torque		Standard
Voltage class	Max. motor kW	Rated current A	Max. motor KW	Rated current A	Standard	Voltage class	Max. motor kW	Rated current A	Max. motor KW	Rated current A	Standard
Three-phase 200 V	0.4	3.0	0.75	3.7	3G3RX-A2004-E1F	Three-phase 400 V	0.4	1.5	0.75	1.9	3G3RX-A4004-E1F
	0.75	5.0	1.5	6.3	3G3RX-A2007-E1F		0.75	2.5	1.5	3.1	3G3RX-A4007-E1F
	1.5	7.5	2.2	9.4	3G3RX-A2015-E1F		1.5	3.8	2.2	4.8	3G3RX-A4015-E1F
	2.2	10.5	4.0	12	3G3RX-A2022-E1F		2.2	5.3	4.0	6.7	3G3RX-A4022-E1F
	4.0	16.5	5.5	19.6	3G3RX-A2037-E1F		4.0	9.0	5.5	11.1	3G3RX-A4040-E1F
	5.5	24	7.5	30	3G3RX-A2055-E1F		5.5	14	7.5	16	3G3RX-A4055-E1F
	7.5	32	11	44	3G3RX-A2075-E1F		7.5	19	11	22	3G3RX-A4075-E1F
	11	46	15	58	3G3RX-A2110-E1F		11	25	15	29	3G3RX-A4110-E1F
	15	64	18.5	73	3G3RX-A2150-E1F		15	32	18.5	37	3G3RX-A4150-E1F
	18.5	76	22	85	3G3RX-A2185-E1F		18.5	38	22	43	3G3RX-A4185-E1F
	22	95	30	113	3G3RX-A2220-E1F		22	48	30	57	3G3RX-A4220-E1F
	30	121	37	140	3G3RX-A2300-E1F		30	58	37	70	3G3RX-A4300-E1F
	37	145	45	169	3G3RX-A2370-E1F		37	75	45	85	3G3RX-A4370-E1F
	45	182	55	210	3G3RX-A2450-E1F		45	91	55	105	3G3RX-A4450-E1F
	55	220	75	270	3G3RX-A2550-E1F		55	112	75	135	3G3RX-A4550-E1F
	–						75	149	90	160	3G3RX-B4750-E1F
							90	176	110	195	3G3RX-B4900-E1F
							110	217	132	230	3G3RX-B411K-E1F
							132	260	160	290	3G3RX-B413K-E1F

A Rasmi line filter

200 V					400 V
Model 3G3R_X-_	Leakage Nom./Max.	Rated current A	Weight (kg)	Order code	Model 3G3RX-_	Leakage Nom./Max.	Rated current A	Weight (kg)	Order code
A2004/A2007/A2015/A2022/A2037	0.7/40 mA	18	2.0	AX-FIR2018-RE	A4004/A4007/A4015/A4022/A4040	0.3/40 mA	10	1.9	AX-FIR3010-RE
A2055/A2075/A2110	0.7/40 mA	53	2.5	AX-FIR2053-RE	A4055/A4075/A4110	0.3/40 mA	30	2.2	AX-FIR3030-RE
A2150/A2185/A2220	1.2/70 mA	110	8.0	AX-FIR2110-RE	A4150/A4185/A4220	0.8/70 mA	53	4.5	AX-FIR3053-RE
A2300	1.2/70 mA	145	8.6	AX-FIR2145-RE	A4300	3/160 mA	64	7.0	AX-FIR3064-RE
A2370/A2450	6/300 mA	250	13.0	AX-FIR3250-RE	A4370	2/130 mA	100	8.0	AX-FIR3100-RE
A2550	6/300 mA	320	13.2	AX-FIR3320-RE	A4450/A4550	2/130 mA	130	8.6	AX-FIR3130-RE
–					B4750/B4900	10/500 mA	250	13.0	AX-FIR3250-RE
–					B411K/B413K	10/500 mA	320	13.2	AX-FIR3320-RE

A Input AC reactors

3-phase 200 VAC		3-phase 400 VAC
Inverter model 3G3RX-_	Order code	Inverter model 3G3RX-_	Order code
A2004/A2007/A2015	AX-RAI02800100-DE	A4004/A4007/A4015	AX-RAI07700050-DE
A2022/A2037	AX-RAI00880200-DE	A4022/A4040	AX-RAI03500100-DE
A2055/A2075	AX-RAI00350335-DE	A4055/A4075	AX-RAI01300170-DE
A2110/A2150	AX-RAI00180670-DE	A4110/A4150	AX-RAI00740335-DE
A2185/A2220	AX-RAI00091000-DE	A4185/A4220	AX-RAI00360500-DE
A2300/A2370	AX-RAI00071550-DE	A4300/A4370	AX-RAI00290780-DE
A2450/A2550	AX-RAI00042300-DE	A4450/A4550	AX-RAI00191150-DE
		B4750/B4900	AX-RAI00111850-DE
		B411K/B413K	AX.RAI00072700-DE

A DC reactors

3-phase 200 VAC		3-phase 400 VAC
Inverter model 3G3RX-_	Order code	Inverter model 3G3RX-_	Order code
A2004	AX-RC10700032-DE	A4004	AX-RC43000020-DE
A2007	AX-RC06750061-DE	A4007	AX-RC27000030-DE
A2015	AX-RC03510093-DE	A4015	AX-RC14000047-DE
A2022	AX-RC02510138-DE	A4022	AX-RC10100069-DE
A2037	AX-RC01600223-DE	A4040	AX-RC06400116-DE
A2055	AX-RC01110309-DE	A4055	AX-RC04410167-DE
A2075	AX-RC00840437-DE	A4075	AX-RC03350219-DE
A2110	AX-RC00590614-DE	A4110	AX-RC02330307-DE
A2150	AX-RC00440859-DE	A4150	AX-RC01750430-DE
A2185/A2220	AX-RC00301275-DE	A4185/A4220	AX-RC01200644-DE
A2300	AX-RC00231662-DE	A4300	AX-RC00920797-DE
A2370	AX-RC00192015-DE	A4370	AX-RC00741042-DE
A2450	AX-RC00162500-DE	A4450	AX-RC00611236-DE
A2550	AX-RC00133057-DE	A4550	AX-RC00501529-DE
		B4750	AX-RC00372094-DE
		B4900	AX-RC00312446-DE
		B411K	AX-RC00252981-DE
		B413K	AX-RC00213613-DE

A Chokes

Diameter	Description	Order code
21	For 2.2 kW motors or below	AX-FER2102-RE
25	For 15 kW motors or below	AX-FER2515-RE
50	For 45 kW motors or below	AX-FER5045-RE
60	For 55 kW motors or above	AX-FER6055-RE

A Output AC Reactor

200 V		400 V
Model 3G3RX-_	Order code	Model 3G3RX-_	Order code
A2004	AX-RAO11500026-DE	A4004/A4007/A4015	AX-RAO16300038-DE
A2007	AX-RAO07600042-DE
A2015	AX-RAO04100075-DE
A2022	AX-RAO03000105-DE	A4022	AX-RAO11800053-DE
A2037	AX-RAO01830160-DE	A4040	AX-RAO07300080-DE
A2055	AX-RAO01150220-DE	A4055	AX-RAO04600110-DE
A2075	AX-RAO00950320-DE	A4075	AX-RAO03600160-DE
A2110	AX-RAO00630430-DE	A4110	AX-RAO02500220-DE
A2150	AX-RAO00490640-DE	A4150	AX-RAO02000320-DE
A2185	AX-RAO00390800-DE	A4185	AX-RAO01650400-DE
A2220	AX-RAO00330950-DE	A4220	AX-RAO01300480-DE
A2300	AX-RAO00251210-DE	A4300	AX-RAO01030580-DE
A2370	AX-RAO00191450-DE	A4370	AX-RAO00800750-DE
A2450	AX-RAO00161820-DE	A4450	AX-RAO00680900-DE
A2550	AX-RAO00132200-DE	A4550	AX-RAO00531100-DE
		B4750	AX-RAO00401490-DE
		B4900	AX-RAO00331760-DE
		B411K	AX-RAO00262170-DE
		B413K	AX-RAO00212600-DE

Note: This table corresponds with HD rating. When ND is used, please choose the reactor for the next size inverter.

B Accessories

Types	Appearance	Description	Order code
Remote digital operator		5 line LCD digital operator with copy function	3G3AX-OP05
		Operator holder (for inside cabinet mounting)	3G3AX-OP05-H-E
		LED remote digital operator	3G3AX-OP01
		Mounting kit	4X-KITmini
LED digital operator		To be used in combination with communication option boards	3G3AX-OP03
Blind cover		To be used in combination with communication option boards	3G3AX-OP05-B-E
Cables		3 m remote digital operator cable	3G3AX-CAJOP300-EE
	–	RJ45 to USB connection cable	USB-CONVERTERCABLE
	–	RJ45 to USB connection cable	3G3AX-PCACN2

C Option boards

Types	Description	Functions	Order code
Encoder feedback	PG speed controller option card	Phase A,B and Z pulse (differential pulse) inputs (RS-422) Pulse train position command input (RS-422) Pulse monitor output (RS-422) PG frequency range: 100 kHz max	3G3AX-PG
Communication option board	DeviceNet option card	Used for running or stopping the inverter, setting or referencing parameters, and monitoring output frequency, output current … through communications with the host controller	3G3AX-RX-DRT
	PROFIBUS option card		3G3AX-RX-PRT
	EtherCAT option card		3G3AX-RX-ECT
	CompoNet option card		3G3AX-RX-CRT
	MECHATROLINK-II option card		3G3AX-RX-MRT
I/O option	Extra input/output option card	8 digital inputs, 8 digital outputs, 4 analog inputs, 1 analog output	3G3AX-EIO21-ROE

D DC Supply with Regenerative Active Front End

Max. input power kW	Order code
	Stand-alone			Kit
	Regenerative DC bus supply	Low harmonic filter	EMC filter	Kit
30	RFE-B3 30-400-50-230-A-RVE	RHF-RA 43-400-50-20-A-RVE	RFI-RA 12-RVE	RFE-B3 30-400-50-230-IF-RVE
45	RFE-B3 45-400-50-230-A-RVE	RHF-RA 72-400-50-20-A-RVE	RFI-RA 12-RVE	RFE-B3 45-400-50-230-IF-RVE
60	RFE-B3 60-400-50-230-A-RVE	RHF-RA 86-400-50-20-A-RVE	RFI-RA 23-RVE	RFE-B3 60-400-50-230-IF-RVE
80	RFE-B3 80-400-50-230-A-RVE	RHF-RA 144-400-50-20-A-RVE	RFI-RA 23-RVE	RFE-B3 80-400-50-230-IF-RVE
100	RFE-B3 100-400-50-230-A-RVE	RHF-RA 144-400-50-20-A-RVE	RFI-RA X5-RVE	RFE-B3 100-400-50-230-IF-RVE
125	RFE-B3 125-400-50-230-A-RVE	RHF-RA 180-400-50-20-A-RVE	RFI-RA X6-RVE	RFE-B3 125-400-50-230-IF-RVE
150	RFE-B3 150-400-50-230-A-RVE	RHF-RA 217-400-50-20-A-RVE		RFE-B3 150-400-50-230-IF-RVE
200	RFE-B3 200-400-50-230-A-RVE	RHF-RA 304-400-50-20-A-RVE		RFE-B3 200-400-50-230-IF-RVE

Note: The DC Supply with Regenerative Active Front End kit includes a Regenerative DC bus supply, low harmonic filter and EMC filter.

D Regenerative Braking unit

Low Duty applications (50%)		High Duty applications
Max. regenerative power kW	Order code	Max. regenerative power kW	Order code
8	RLD-E0 8-400-50-0-A-RVE	7	RHD-B0 7-400-50-0-A-RVE
12	RLD-E0 12-400-50-0-A-RVE	13	RHD-B0 13-400-50-0-A-RVE
16	RLD-E0 16-400-50-0-A-RVE	18	RHD-B0 18-400-50-0-A-RVE
20	RLD-E0 20-400-50-0-A-RVE	24	RHD-B0 24-400-50-0-A-RVE
24	RLD-E0 24-400-50-0-A-RVE	30	RHD-B0 30-400-50-230-A-RVE
32	RLD-E0 32-400-50-0-A-RVE	50	RHD-B0 50-400-50-230-A-RVE
40	RLD-E0 40-400-50-0-A-RVE	70	RHD-B0 70-400-50-230-A-RVE
48	RLD-E0 48-400-50-0-A-RVE	100	RHD-B0 100-400-50-230-A-RVE
58	RLD-E0 58-400-50-0-A-RVE	125	RHD-B0 125-400-50-230-A-RVE
80	RLD-E0 80-400-50-0-A-RVE	150	RHD-B0 150-400-50-230-A-RVE
95	RLD-E0 95-400-50-0-A-RVE
116	RLD-E0 116-400-50-0-A-RVE
140	RLD-E0 140-400-50-0-A-RVE
170	RLD-E0 170-400-50-230-A-RVE
200	RLD-E0 200-400-50-230-A-RVE

D Braking unit, braking resistor unit

Inverter					Braking resistor unit
Voltage	Max. motor kW	Inverter 3G3RX_	Braking unit AX-BCR_	Connectable min. resistance Ω	Inverter mounted type (3% ED, 10 sec max.)		Braking torque %	External resistor 10% ED 10 sec max. for built-in 5 sec max. for braking unit		Braking torque %
Voltage	Max. motor kW	3-phase	Braking unit AX-BCR_	Connectable min. resistance Ω	Order code	Resist Ω	Braking torque %	Order code	Resist Ω	Braking torque %
200 V (single-/three-phase)	0.55	A2004	Built-in	50	AX-REM00K1200-IE	200	180	AX-REM00K1200-IE	200	180
	1.1	A2007		50	AX-REM00K1200-IE	200	100	AX-REM00K2070-IE	70	200
	1.5	A2015		35	AX-REM00K2070-IE	70	140	AX-REM00K4075-IE	75	130
	2.2	A2022			AX-REM00K2070-IE	70	90	AX-REM00K4035-IE	35	180
	4.0	A2037			AX-REM00K4075-IE	75	50	AX-REM00K6035-IE	35	100
	5.5	A2055		16	AX-REM00K4035-IE	35	75	AX-REM00K9020-IE	20	150
	7.5	A2075		10	AX-REM00K4035-IE	35	55	AX-REM01K9017-IE	17	110
	11.0	A2110		10	AX-REM00K6035-IE	35	40	AX-REM02K1017-IE	17	75
	15.0	A2150		7.5	AX-REM00K9017-IE	17	55	AX-REM03K5010-IE	10	95
	18.5	A2185		7.5	AX-REM03K5010-IE	10	75	AX-REM19K0008-IE	8	95
	22.0	A2220		5	AX-REM03K5010-IE	10	65	AX-REM19K0008-IE	8	80
	30.0	A2300	2035090-TE	4	–			AX-REM19K0006-IE	6	80
	37.0	A2370	2035090-TE	4				AX-REM19K0006-IE	6	60
	45.0	A2450	2070130-TE	2.8				2 x AX-REM19K0006-IE	3	105
	55.0	A2550	2070130-TE	2.8				2 x AX-REM19K0006-IE	3	85
400 V (three-phase)	0.55	A4004	Built-in	100	AX-REM00K1400-IE	400	200	AX-REM00K1400-IE	400	200
	1.1	A4007			AX-REM00K1400-IE	400	200	AX-REM00K1400-IE	400	200
	1.5	A4015			AX-REM00K1200-IE	200	190	AX-REM00K2200-IE	200	190
	2.2	A4022			AX-REM00K2200-IE	200	130	AX-REM00K5120-IE	120	200
	4.0	A4040		70	AX-REM00K2120-IE	120	120	AX-REM00K6100-IE	100	140
	5.5	A4055		70	AX-REM00K4075-IE	75	140	AX-REM00K9070-IE	70	150
	7.5	A4075		35	AX-REM00K4075-IE	75	100	AX-REM01K9070-IE	70	110
	11.0	A4110		35	AX-REM00K6100-IE	100	50	AX-REM02K1070-IE	70	75
	15.0	A4150		24	AX-REM00K9070-IE	70	55	AX-REM03K5035-IE	35	110
	18.5	A4185		24	AX-REM03K5035-IE	35	90	AX-REM19K0030-IE	30	100
	22.0	A4220		20	AX-REM03K5035-IE	35	75	AX-REM19K0030-IE	30	85
	30.0	A4300	4015045-TE	16	–			AX-REM19K0020-IE	20	95
	37.0	A4370	4017068-TE	11				AX-REM38K0012-IE	15	125
	45.0	A4450	4017068-TE	11				AX-REM38K0012-IE	15	100
	55.0	A4550	4035090-TE	8.5				2 x AX-REM19K0020-IE	10	100
	75.0	B4750	4035090-TE	8.5				3 x AX-REM19K0030-IE	10	75
	90.0	B4900	4070130-TE	5.5				2 x AX-REM38K0012-IE	6	105
	110.0	B411K	4090240-TE	3.2				3 x AX-REM38K0012-IE	4	125
	132.0	B413K	4090240-TE	3.2				3 x AX-REM38K0012-IE	4	105

E Computer software

Description	Installation	Order code

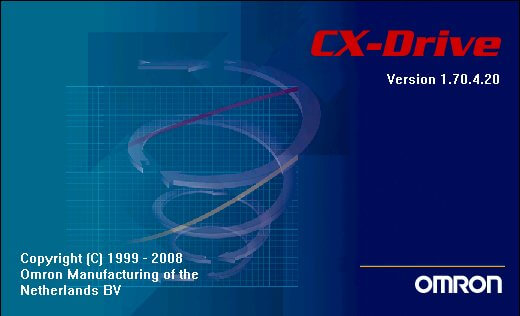

Computer software	Configuration and monitoring software tool	CX-Drive
Computer software	Configuration and monitoring software tool	CX-One
Computer software	Software tool for energy saving calculation	€Saver

Specifications

200 V class

Three-phase: 3G3RX-_				A2004	A2007	A2015	A2022	A2037	A2055	A2075	A2110	A2150	A2185	A2220	A2300	A2370	A2450	A2550
Max. applicable motor 4P kW			at CT	0.4	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55
Max. applicable motor 4P kW			at VT	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Output characteristics	Inverter capacity kVA	200 V	at CT	1.0	1.7	2.5	3.6	5.7	8.3	11.0	15.9	22.1	26.3	32.9	41.9	50.2	63.0	76.2
		200 V	at VT	1.3	2.1	3.2	4.1	6.7	10.4	15.2	20.0	26.3	29.4	39.1	49.5	59.2	72.7	93.5
		240 V	at CT	1.2	2.0	3.1	4.3	6.8	9.9	13.3	19.1	26.6	31.5	39.4	50.2	60.2	75.6	91.4
		240 V	at VT	1,5	2.6	3.9	5.0	8.1	12.4	18.2	24.1	31.5	35.3	46.9	59.4	71.0	87.2	112.2
	Rated output current (A)		at CT	3.0	5.0	7.5	10.5	16.5	24	32	46	64	76	95	121	145	182	220
	Rated output current (A)		at VT	3.7	6.3	9.4	12	19.6	30	44	58	73	85	113	140	169	210	270
	Max. output voltage			Proportional to input voltage: 0 to 240 V
	Max. output frequency			400 Hz
Power supply	Rated input voltage and frequency			3-phase 200 to 240 V 50/60 Hz
	Allowable voltage fluctuation			-15% to 10%
	Allowable frequency fluctuation			5%
Braking	Regenerative braking			Internal BRD circuit (external discharge resistor)											External regenerative braking unit
Braking	Minimum connectable resistance			50	50	35	35	35	16	10	10	7.5	7.5	5	External regenerative braking unit
Protective structure				IP20
Cooling method				Forced air cooling

400 V class

Three-phase: 3G3RX-_				A4004	A4007	A4015	A4022	A4040	A4055	A4075	A4110	A4150	A4185	A4220	A4300	A4370	A4450	A4550	B4750	B4900	B411K	B413K
Max. applicable motor 4P kW 3 3. Based on a standard 3-phase standard motor.			at CT	0.4	0.75	1.5	2.2	4.0	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132
			at VT	0.75	1.5	2.2	4.0	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160
Output characteristics	Inverter capacity kVA	400 V	at CT	1.0	1.7	2.5	3.6	6.2	9.7	13.1	17.3	22.1	26.3	33.2	40.1	51.9	63.0	77.6	103.2	121.9	150.3	180.1
		400 V	at VT	1.3	2.1	3.3	4.6	7.7	11.0	15.2	20.9	25.6	30.4	39.4	48.4	58.8	72.7	93.5	110.8	135	159.3	200.9
		480 V	at CT	1.2	2.0	3.1	4.3	7.4	11.6	15.8	20.7	26.6	31.5	39.9	48.2	62.3	75.6	93.1	123.8	146.3	180.4	216.1
		480 V	at VT	1.5	2.5	4.0	5.5	9.2	13.3	18.2	24.1	30.7	36.5	47.3	58.1	70.6	87.2	112.2	133	162.1	191.2	241.1
	Rated output current (A)		at CT	1.5	2.5	3.8	5.3	9.0	14	19	25	32	38	48	58	75	91	112	149	176	217	260
	Rated output current (A)		at VT	1.9	3.1	4.8	6.7	11.1	16	22	29	37	43	57	70	85	105	135	160	195	230	290
	Max. output voltage			Proportional to input voltage: 0 to 480 V
	Max. output voltage			Proportional to input voltage: 0 to 480 V																			Max. output frequency	400 Hz
	Power supply	Rated input voltage and frequency			3-phase 380 to 480 V 50/60 Hz
Allowable voltage fluctuation			-15% to 10%
Allowable frequency fluctuation			5%
Braking		Regenerative braking			Internal BRD circuit (external discharge resistor)											External regenerative braking unit
Braking		Minimum connectable resistance			100	100	100	100	70	70	35	35	24	24	20	External regenerative braking unit
Protective structure				IP20															IP00
Cooling method				Forced air cooling

Dimensions

Voltage class	Inverter model	Dimensions in mm
Voltage class	Inverter model	H	W	D	Weight (kg)
Three-phase 200 V	3G3RX-A2004	255	150	140	3.5
	3G3RX-A2007
	3G3RX-A2015
	3G3RX-A2022
	3G3RX-A2037
	3G3RX-A2055	260	210	170	6
	3G3RX-A2075
	3G3RX-A2110
	3G3RX-A2150	390	250	190	14
	3G3RX-A2185
	3G3RX-A2220
	3G3RX-A2300	540	310	195	20
	3G3RX-A2370	550	390	250	30
	3G3RX-A2450	550	390	250	30
	3G3RX-A2550	700	480	250	43
Three-phase 400 V	3G3RX-A4004	255	150	140	3.5
	3G3RX-A4007
	3G3RX-A4015
	3G3RX-A4022
	3G3RX-A4040
	3G3RX-A4055	260	210	170	6
	3G3RX-A4075
	3G3RX-A4110
	3G3RX-A4150	390	250	190	14
	3G3RX-A4185
	3G3RX-A4220
	3G3RX-A4300	540	310	195	22
	3G3RX-A4370	550	390	250	30
	3G3RX-A4450
	3G3RX-A4550
	3G3RX-B4750	700	390	270	60
	3G3RX-B4900	700	390	270	60
	3G3RX-B411K	740	480	270	80
	3G3RX-B413K	740	480	270	80

Accessories

Regenerative accessories

DC Supply with Regenerative Active Front End system

Regenerative DC bus supply

Reference: RFE-B3_			30	45	60	80	100	125	150	200
Max. input power kW			30	45	60	80	100	125	150	200
DC capacity μF			100		220			440	660
Max. input current A	Driving	AC	65	98	130	173	217	271	325	433
	Driving	DC	78	118	156	208	260	325	390	520
	Braking	AC	52	78	104	139	173	217	260	346
	Braking	DC	62	97	125	167	208	260	312	415
Rated input voltage			3-phase 400 V
Allowable voltage fluctuation			-15% to 10%
Mains frequency			40 to 60 Hz
Efficiency η			98%
Degree of protection			IP20
Ambient humidity			85% RH or less (without condensation)
Storage temperature			-25 to 55°C
Ambient temperature			5 to 40°C

Low harmonic filter

Reference: RHF-RA_		43	72	86	144	180	217	304
IRMS current A	100% AC	43	72	86	144	180	217	304
IRMS current A	150% AC 1 min in 10 min	64,5	108	129	216	270	325.5	456
Heat loss W		242	352	374	488	692	743	905
Allowable voltage fluctuation		-15% to 10%
Power frequency		50 Hz
Efficiency η		98,5-99,5%
Degree of protection		IP20
Ambient humidity		85% RH or less (without condensation)
Storage temperature		-25 to 55°C
Ambient temperature		-20 to 45°C

Regenerative Braking unit system

Regenerative Braking unit for Low Duty applications (50%)

Reference: RLD-E0_		8	12	16	20	24	32	40	48	58	80	95	116	140	170	200
Max. regenerative power kW		8	12	16	20	24	32	40	48	58	80	95	116	140	170	200
DC capacity μF		20		40		220			440					660
Max. current A	DC	14	20	28	35	42	55	70	83	101	139	165	202	242	295	348
Max. current A	AC	12	17	23	29	35	46	58	69	84	116	137	168	202	246	290
Allowable voltage fluctuation		-15% to 10%
Mains frequency		50 to 60 Hz
Efficiency η		98%
Degree of protection		IP20
Ambient humidity		85% RH or less (without condensation)
Storage temperature		-25 to 55°C
Ambient temperature		5 to 40°C

Regenerative Braking unit for High Duty applications

Reference: RHD-B0_		7	13	18	24	30	50	70	100	125	150
Max. regenerative power kW		7	13	18	24	30	50	70	100	125	150
DC capacity μF		20		100	40		220		660	440	660
Max. current A	DC I 100%	12	23	31	42	52	87	122	174	218	260
	AC Ieff 100%	10	19	26	35	43	72	101	144	180	217
	AC Ieff 60 s in 10 min	12	23	31	42	52	86	121	173	216	260
Allowable voltage fluctuation		-15% to 10%
Mains frequency		40 to 60 Hz
Efficiency η		98%
Degree of protection		IP20
Ambient humidity		85% RH or less (without condensation)
Storage temperature		-25 to 55°C
Ambient temperature		5 to 40°C
